Y-Type, Bellow, SS, Cast Iron, WCB, Pneumatic.


Angle Pattern Globe valves are manually operated valves design with modification of basic Tee Pattern Globe valve, with its outlet opening oriented at right angle of 90 degrees. Angle valves are used for regulating and controlling the flow of a liquid or air. The fluid leaves at right angles to the direction in which it enters the valve. Generally, Globe valves are used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body. They are linear motion valves typically design to control flow or pressure and complete shutoff.

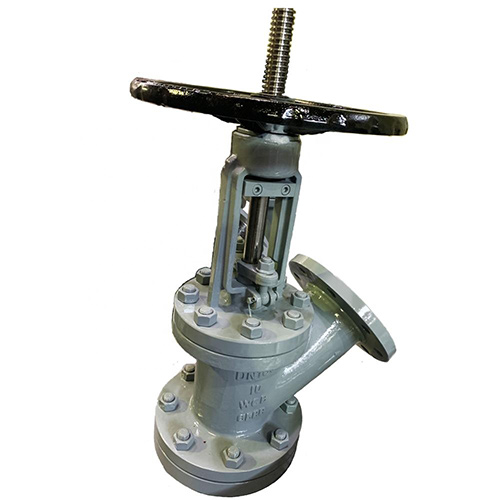

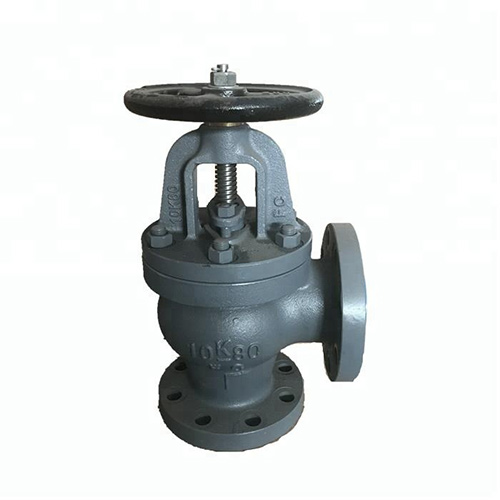

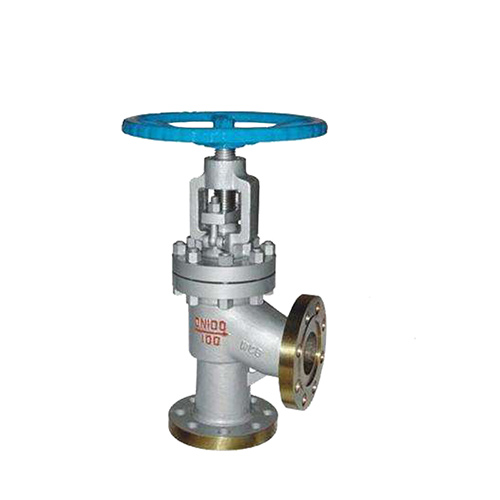

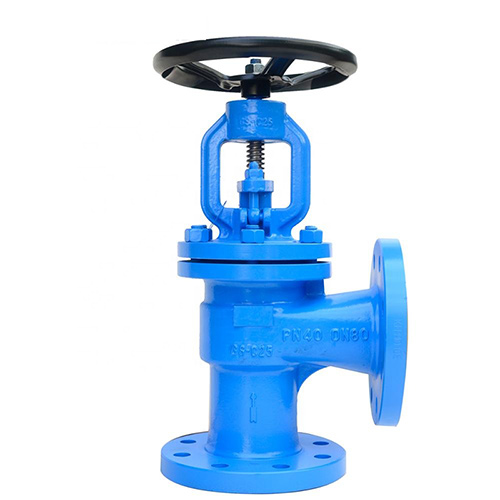

Parallel Dynamics USA supply wide range of Angle Globe Valves: Y-type, SS, Cast Iron, Below, WCB SS, Pneumatic and Motorized Angle Globe Valves.

  • Size Range: NPS 1/2” ~ 24” ; DN15 ~ DN50
  • Body Material: Forged Carbon Steel, Stainless Steel, Alloy Steel, etc.
  • Construction: Optional Bolted bonnet, Welded bonnet and Pressure seal bonnet.
  • OS & Y, Outside Screw and Yoke.
  • Optional Full or Reduce port.
  • Pressure Rating: Class 150 ~ Class 2500 ; PN140 ~ PN320
  • End Type: NPT or BSP threaded, SW, RF, BW
  • Mode of Operation: Hand-wheel, Wrench nut.
  • Design and Manufacture: API 602, BS 5352
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: MFR’s Standard
  • Flange Ends Dimensions: ASME B16.5 or DIN EN 1092
  • Butt-Welding Ends: ASME B16.25 or EN 12627
  • Socket Welding Ends: ASME B16.11
  • Threaded Ends: ASME B1.20.1
  • Inspection & Test: API 598 or DIN 3230
  • API 602 800lbs Forged Steel ASTM A105 Globe Valve
  • API 602 800lbs Forged Steel ASTM A105 Globe Valve
  • API602 Industrial Forged Steel Stop Globe Valve
  • ANSI manual A105 Forging Flange Globe Valve
  • API Hand Wheel Operated SW Ends Y-Type Forged Steel Globe
