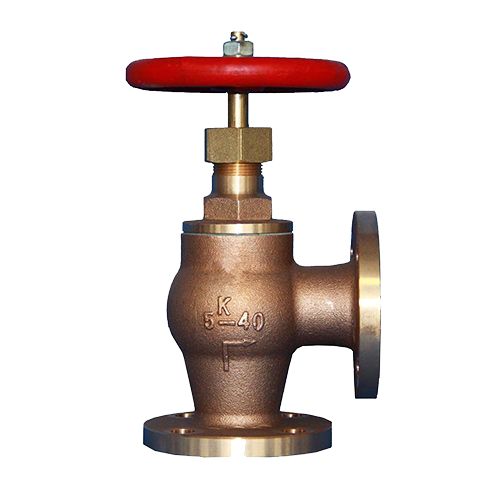

  • JIS Marine Angle Check and Globe Valve
  • Cast Steel Globe Valve
  • ANSI WCB Cast Steel Piston Globe Valve
  • ASTM A216 WCB Cast Steel Globe Valve
  • PTFE Lining Flange Cast Steel Globe Valve
  • Thermal Bellow Seal Stop Globe Valves
  • Screw Lift SDNR Steam Cast Steel Stop Globe Valve

CARBON STEEL PIPE ASTM A106 ASTM A53 A210 A213 A333 A335


  • ASTM A106,ASTM, A53, A179, A192, A252, A333


    ASTM A106 Gr A/B, A53 Gr,A/B. ASTM A106, ASTM A53, ASTM A179, ASTM A192, ASTMA252, ASTM A333: Carbon Steel Pipes are widely use in many industries like petrochemical, marine, ships, boiler, heat exchanger, bridges, railways, buildings, and also in many machinery plants. Usually made out of carbon content, suitable for structural building, conveying fluids, oil, and gas,slurry, and other liquids.n

  • ASTM A53


    Carbon steel pipe ASTM A53 IS widely use in generating plants. water, air, natural gas transmission, gas pipelines, mechanical and pressure applications. Steel materials used to create seamless pipe and welded pipe must be produced via open hearth, electric furnace, basic oxygen, or any combination of these processes. All weld seams in electric-resistance welded A53 Grade B pipe must be heat treated after welding to a minimum of 1,000°F (540°C) to eliminate low untempered martensite.

  • ASTM A335 P9,P11,T22,T91


    Carbon steel pipe ASTM A53 IS widely use in generating plants. water, air, natural gas transmission, gas pipelines, mechanical and pressure applications. Steel materials used to create seamless pipe and welded pipe must be produced via open hearth, electric furnace, basic oxygen, or any combination of these processes. All weld seams in electric-resistance welded A53 Grade B pipe must be heat treated after welding to a minimum of 1,000°F (540°C) to eliminate low untempered martensite.

  • ASTM A335, A333,


    ASTM A333 Standard Specification for Seamless and Welded Steel Pipe for Low Temperature Service section 4.2.1.1; section 4.2.1.2 or section 4.2.1.3nQuenched and Tempered per A 333/A 333M – 05 section 4.2.2.1nDouble Normalized and Tempered per A 333/A 333M – 05 section 4.2.2.2

  • ASTM A179, A192


    Heat exchanger, Condenser, BoilerTube: ASTM A179, A192

  • API 5L-PSL1, API 5L-PSL2,


    API SPEC 5L are mostly used for line pipe, crack propagation, sewage, high resistance application, for conveying water, gas, and petroleum industries. Grades X42, X46, X52, X56, X60, X65, X70, and X80. nAPI 5L Welded — Grades B (X42, X52, X60, X65 and X70) PSL 1, PSL 2



CARBON STEEL PIPES API 5L API 5CT 5DP ASTM A106 A53 A210 A213 A333 A335


ASTM A106 Grade B Pipe ASTM A106 Grade B Seamless Pipe ASTM A106 Grade A Pipe ASTM A106 Grade A Seamless Pipe ASTM A106 Grade C Pipe ASTM A106 Grade C Seamless Pipe ASTM A106 Grade B A Seamless Pipes Tubes ASTM A106 Grade B Pipe


CARBON STEEL PIPE

  • ASTM A106 GR. A,B,C.
  • ASTM A53 GR.B
  • ASTM A333 GR.B 6
  • API 5L GR. B PSL 1
  • API 5L GR. B PSL 2
  • API 5L X42 PSL 1
  • API 5L X42 PSL 2
  • API 5L X46 PSL 1
  • API 5L X46 PSL 2
  • API 5L X52 PSL 1
  • API 5L X52 PSL 2
  • API 5L X56 PSL 1
  • API 5L X56 PSL 2
  • API 5L X60 PSL 1
  • API 5L X60 PSL 2
  • API 5L X65 PSL 1
  • API 5L X65 PSL 2
  • API 5L X70 PSL 1
  • API 5L X70 PSL 2
  • API 5L X80 PSL 1
  • API 5L X80 PSL 2
  • API 5L SMLS
  • API 5L WELDED
  • API 5L IBR
  • API 5L ERW
  • API LSAW
  • API EFW
  • ASTM A671
  • ASTM A672

Chemical Composition & Mechanical Property

All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API.

PSL 1
GRADE Chemical Composition Mechanical Property
C (Max) Mn (Max) P (Max) S (Max) TENSILE ( Min ) YIELD ( Min )
Psi X 1000 Mpa Psi X 1000 Mpa
A25 CL   I 0.21 0.60 0.030 0.030 45 310 25 172
CL  II 0.21 0.60 0.030 0.030
A 0.22 0.90 0.030 0.030 48 331 30 207
B 0.26 1.20 0.030 0.030 60 414 35 241
X42 0.26 1.30 0.030 0.030 60 414 42 290
X46 0.26 1.40 0.030 0.030 63 434 46 317
X52 0.26 1.40 0.030 0.030 66 455 52 359
X56 0.26 1.40 0.030 0.030 71 490 56 386
X60 0.26 1.40 0.030 0.030 75 517 60 414
X65 0.26 1.45 0.030 0.030 77 531 65 448
X70 0.26 1.65 0.030 0.030 82 565 70 483
PSL 2
GRADE Chemical Composition Mechanical Property
C
(Max)
Mn
(Max)
P
(Max)
S
(Max)
Tensile Yield C. E.      IMPACT ENERGY
Psi x 1000 Mpa Psi x 1000 Mpa PCM IIW J FT/LB
B 0.22 1.20 0.025 0.015 60 - 110 414 - 758 35 - 65 241 - 448 0.25 0.43 T/L 27/41 T/L 20/30
X42 0.22 1.30 0.025 0.015 60 - 110 414 - 758 42 - 72 290 - 496 0.25 0.43 T/L 27/41 T/L 20/30
X46 0.22 1.40 0.025 0.015 63 - 110 434 - 758 46 - 76 317 - 524 0.25 0.43 T/L 27/41 T/L 20/30
X52 0.22 1.40 0.025 0.015 66 - 110 455 - 758 52 - 77 359 - 531 0.25 0.43 T/L 27/41 T/L 20/30
X56 0.22 1.40 0.025 0.015 71 - 110 490 - 758 56 - 79 386 - 544 0.25 0.43 T/L 27/41 T/L 20/30
X60 0.22 1.40 0.025 0.015 75 - 110 517 - 758 60 - 82 414 - 565 0.25 0.43 T/L 27/41 T/L 20/30
X65 0.22 1.45 0.025 0.015 77 - 110 531 - 758 65 - 82 448 - 565 0.25 0.43 T/L 27/41 T/L 20/30
X70 0.22 1.65 0.025 0.015 82 - 110 565 - 758 70 - 82 483 - 565 0.25 0.43 T/L 27/41 T/L 20/30
X80 0.22 1.90 0.025 0.015 90 - 120 621 - 827 80 - 102 552 - 705 0.25 0.43 T/L 27/41 T/L 20/30
