FINNED TUBES

FINNED TUBES: FIN TUBE L LL KL G EMBEDDED EXTRUDED PERFORATED

PRODUCTS

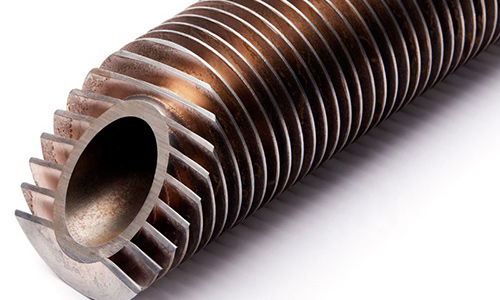

FINNED TUBE


  • Fins Per Inch: 7,9,11.
  • Fin Height: 0.140″ max.
  • Tube Material: Cu, CuNi, Al.
  • Root Diameter 0.5″ to 1.5″ OD.
  • Max Process Temperature Thermal Properties of Tube

FINNED TUBES: FIN TUBES L LL KL G EMBEDDED EXTRUDED PERFORATED


  • L FINNED TUBE


    L Finned TubeS MAXIMUM WORKING TEMPERATURE: 150°C ATMOSPHERIC CORROSION RESISTANCE: ACCEPTABLE FIN MATERIALS: ALUMINUM, COPPER TUBE MATERIALS: ANY THEORETICAL LIMIT

  • LL FINNED TUBE


    LL Finned TubeS MAXIMUM WORKING TEMPERATURE: 180°C ATMOSPHERIC CORROSION RESISTANCE: ACCEPTABLE FIN MATERIALS: ALUMINUM, COPPER TUBE MATERIALS: ANY THEORETICAL LIMIT

  • KL FINNED TUBES


    KL Finned Tubes MAXIMUM WORKING TEMPERATURE: 400°C ATMOSPHERIC CORROSION RESISTANCE: ACCEPTABLE FIN MATERIALS: ALUMINUM, COPPER, CARBON STEEL TUBE MATERIALS: ANY THEORETICAL LIMIT

  • G EMBEDDED FINNED TUBES


    G Embedded Finned Tubes MAXIMUM WORKING :TEMPERATURE: 400°C MECHANICAL RESISTANCE: ACCEPTABLE FIN MATERIALS: ALUMINUM, COPPER, CARBON STEEL TUBE MATERIALS: ANY THEORETICAL LIMIT

  • EXTRUDED FINNED TUBE


    Extruded Finned Tube MAXIMUM WORKING TEMPERATURE: 285°C ATMOSPHERIC CORROSION RESISTANCE: EXCELLENT MECHANICAL RESISTANCE: EXCELLENT FIN MATERIALS: ALUMINUM TUBE MATERIALS: ANY THEORETICAL LIMIT





FINNED TUBES: FIN TUBE L LL KL G EMBEDDED EXTRUDED PERFORATED


L FINNED TUBES
  • MAXIMUM WORKING TEMPERATURE: 150°C
  • ATMOSPHERIC CORROSION RESISTANCE: ACCEPTABLE
  • FIN MATERIALS: ALUMINUM, COPPER
  • TUBE MATERIALS: ANY THEORETICAL LIMIT
G EMBEDDED FINNED TUBE
  • MAXIMUM WORKING :TEMPERATURE: 400°C
  • MECHANICAL RESISTANCE: ACCEPTABLE
  • FIN MATERIALS: ALUMINUM, COPPER, CARBON STEEL
  • TUBE MATERIALS: ANY THEORETICAL LIMIT
LL FINNED TUBES
  • MAXIMUM WORKING TEMPERATURE: 180°C
  • ATMOSPHERIC CORROSION RESISTANCE: ACCEPTABLE
  • FIN MATERIALS: ALUMINUM, COPPER TUBE
  • MATERIALS: ANY THEORETICAL LIMIT
EXTRUDDED FINNED TUBE
  • MAXIMUM WORKING TEMPERATURE: 285°C
  • MECHANICAL RESISTANCE: EXCELLENT
  • FIN MATERIAL: ALUMINUM
  • TUBE MATERIALS: ANY THEORETICAL LIMIT
  • ATMOSPHERIC CORROSION RESISTANCE: EXCELLENT
KL FINNED TUBES
  • MAXIMUM WORKING TEMPERATURE: 400°C
  • ATMOSPHERIC CORROSION RESISTANCE: ACCEPTABLE
  • FIN MATERIALS: ALUMINUM, COPPER, CARBON STEEL TUBE
  • MATERIALS: ANY THEORETICAL LIMIT

Fin Tube specifications

Base Tube Material

 Stainless Steel, Carbon Steel, Copper Alloy, Alloy Steel etc

Fin Material

 Aluminum, Copper Alloy, Stainless Steel, Carbon Steel

Fin Tube Type

1. Copper Fin tube, Copper Fin, Copper tube, Aluminum Fin copper tube
2. Spiral Fin tube, Steel Fin, Steel tube
3. Extruded Fin, Tube Aluminum, Fin Steel tube
4. Stainless Fin tube, Stainless Fin Steel tube
5. High frequency welded fin tube, stainless fin steel tube
6. Aluminum Fin tube,  Aluminum Fin Steel tube

Base Tube OD

12.7~18mm

Fin tube Max design temperature

 <450°C

Fin depth

 0.5~3 mm

Product processing

 Extruded, Embedded, High Frequency Welding etc.

Package

 In bundles, plywood cases, wooden cases with water-proof package, etc.

Application

 Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchanger, superheater, Boiler etc.
