HYDRAULIC TORQUE WRENCHES

  1. Home
  2. PRODUCTS
  3. HYDRAULIC TORQUE WRE ...

PRODUCTS

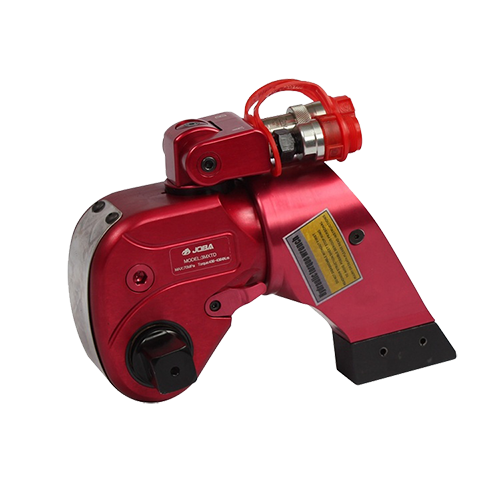

DRIVE HYDRAULIC TORQUE WRENCH

  • High strengthen aluminium-titanium alloy body.
  • 700 bar maximum working pressure,Repeat accuracy ±3%.
  • Working with the high resistance sockets, suitable for more size of screws.
  • 360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.
  • Replaceable square drive adapters.

HYDRAULIC TORQUE WRENCH,

Parallel Dynamics USA supply wide range of Bolting tools, Hydraulic Torque wrench, Hydraulic tensioners, Hydraulic Pumps, Electric and Pneumatic torque wrenches, and Flange openers.
GET A QUOTE
TORQUE WRENCHES
  • Hydraulic Torque Wrenches
  • Pneumatic Torque Wrenches
  • Electric Torque Wrenches
  • Manual Torque Multipliers
  • Torque Wrenches Accessories
FLANGE SPREADERS
  • Wedge Spreader
  • Industrial Spreader
  • Collet Flange Spreader
HYDRAULIC TENSIONERS
  • Custom Bolt Tensioners
  • Foundation Bolt Tensioners
  • Power Generation Bolt Tensioners
  • Topside Bolt Tensioners
  • Subsea Tensioners
FASTENERS
  • Nuts
  • Washers
  • Gaskets
HYDRAULIC TENSIONERS
  • Multi Stud Bolt Tensioner
  • Flange Tensioners
  • Auto Retract Tensioners
  • Wind Turbine Tesioners
  • Hydraulic Nuts
Pneumatic Torrque Wrenches
  • Single Speed
  • Dual Speed

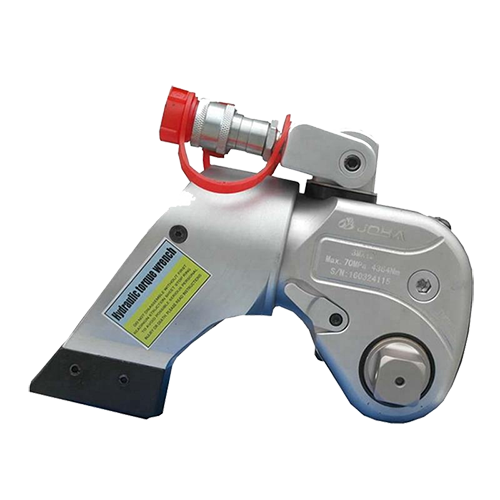

  • XRigid steel design, durability, reliabilty and safety.
  • No tools needed for changing hexagon heads.
  • Versatility: one hydraulic drive unit per torque capacity can be used to drive any hexagon head within that range.
  • Innovative, pinless wrench construction with quick release drive and automatic crank engagement fast operation due to the large nut rotation per wrench cycle(30 degree)and rapid return stroke, double acting.
  • Constant torque output provides high accuracy (±3%) across the full stroke.
  • 360 degree swivel manifold with screw lock couplers.
  • Optional interchangeable metric and imperial hexagon heads and reducer inserts.
  • Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut.
  • Hydraulic torque wrenches(100-72000Nm).
  • PLC synchronous lifting system.
  • Hydraulic lifting pumps, manual and electric type.
  • Hydraulic pullers, manual and hydraulic type.
  • Hydraulic bolt tensioners.
  • Hydraulic flange spreader, manual and hydraulic type.
  • Hydraulic steel wire rope press machine.
  • Hydraulic accessories(hoses, couplers, oil distributors, etc.) .

Model

Metric Bolt Size(mm)

Metric Nut Size(mm)

Min. Torque(Nm)

Max. Torque(Nm)

Working Pressure(Bar)

Power Head Weight(kg)

Working Head Weight(kg)

FY-2XLCT

16-36

24-55

232

2328

700

0.9

1.5

FY-4XLCT

24-42

36-65

585

5858

700

1.7

3.4

FY-8XLCT

30-64

46-90

1094

10941

700

3

6.3

FY-14XLCT

33-76

50-115

1852

18521

700

4.6

11.4

FY-30XLCT

76-115

110-155

4188

41882

700

10.4

20.5



Electric Pump For Torque Wrenches

Model

Tank

Motor

Voltage

Flow

(L/min)

Max.Working

Dimensions

Standard Length

Weight

(kg)

Oil

Capacity

Power

Pressure

(L×W×H)

of Remote Line

Distributor

(L)

(KW)

(Mpa)

(mm)

(m)

(pc)

FY-BSB-2W

8

2.2

220V/50Z

2

70

430×330×540

6

43

2

Type

1MXTD

3MXTD

5MXTD

8MXTD

10MXTD

15MXTD

20MXTD

25MXTD

Torque range (Nm)

185

436

779

1072

1553

2050

2617

3493



1852

4364

7789

10715

15528

20501

26171

34928

Weight (Kg)

2.7

4.8

8.8

12

14.5

19

25

37.5

L1(mm)

138

168

207

226

250

281

304

331

L2(mm)

194

244

296

326

366

402

442

483

H1(mm)

50

70

80

90

100

112

120

138

H2(mm)

73

90

124

133

143

165

183

202

H3(mm)

96

125

152

170

186

208

226

250

H4(mm)

140

165

193

211

227

249

267

291

R1(mm)

26

34

40

46

50

56

60

66

R2(mm)

107

132

162

178

199

218

240

260

Square drive

3/4'

1'

1-1/2'

1-1/2'

1-1/2'

2'

2-1/2'

2-1/2'
