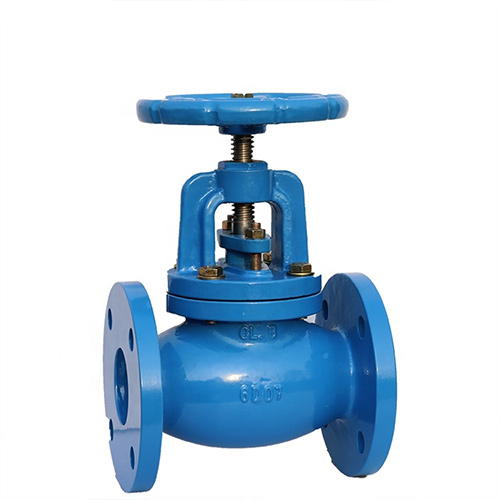

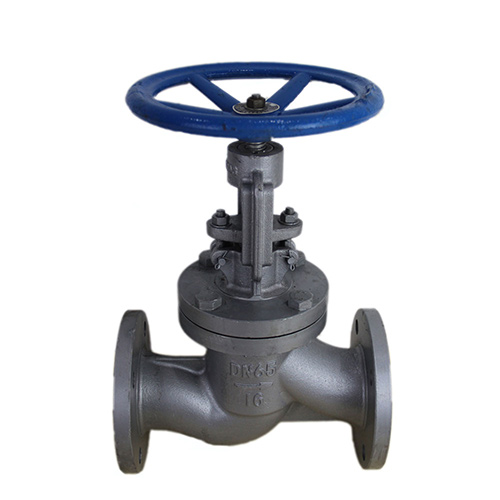

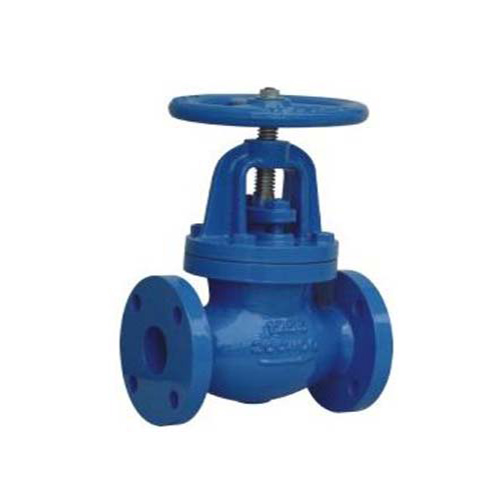

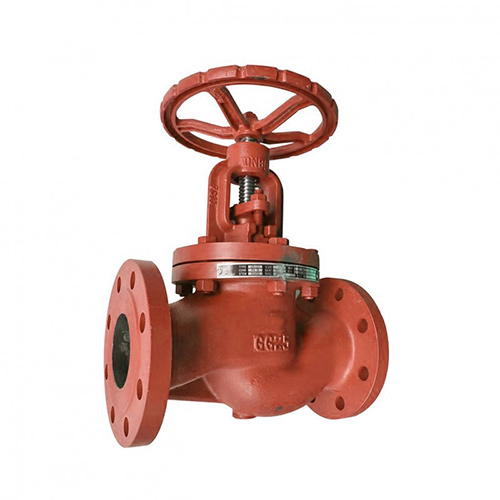

CAST IRON GLOBE VALVES

API, Flanged, Ductile, Rising Stern Globe Valves ...

DESCRIPTION

Globe valve is used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body. They are linear motion valves typically design to control flow or pressure and complete shutoff. There are Cast Steel, Cast Iron, Forged Steel and other materials as per requirement and applications.

  • Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc.
  • Construction: OS & Y (Rising Stem)
  • Bolted Bonnet and Beveled Wedge Disc
  • Coating: Paint Coating or Natural Color as per customer’s requirement
  • Size Range: NPS 1-1/2” ~ 48” ; DN40 ~ DN600
  • Pressure Rating: Class 150 ~ Class 1500 ; PN16 ~ PN100
  • End Type: RF, FF, RTJ, BW
  • Mode of Operation: Handwheel, Gearbox, Electric, Pneumatic, etc.
  • Design and Manufacture: BS 1873 ASME B16.34 or DIN 3356
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: ASME B16.10 or DIN 3202 F1 / F32
  • Flange Ends Dimensions: ASME B16.5 or DIN 2543 ~ 2547, EN 1092-1
  • Butt-Welding Ends: ASME B 16.25
  • Inspection & Test: API 598 or DIN 3230
  • Cast Steel Globe Valve
  • ANSI WCB Cast Steel Piston Globe Valve
  • ASTM A216 WCB Cast Steel Globe Valve
  • PTFE Lining Flange Cast Steel Globe Valve
  • Thermal Bellow Seal Stop Globe Valves
  • Screw Lift SDNR Steam Cast Steel Stop Globe Valve
