ASTM A 216, WCB, Bellow, Screw Lift Globe Valves ASTM A 216, WCB, Bellow, Screw Lift


CAST STEEL GLOBE VALVES: Globe valve is used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body. They are linear motion valves typically design to control flow or pressure and complete shutoff. Globe Valvesl are available in Cast Steel, Cast Iron, Forged Steel and other materials as per requirement and applications.

  • Size Range: NPS 1-1/2” ~ 48” ; DN40 ~ DN600
  • Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc.
  • Construction: OS & Y, Rising Stem, Plug Disc.
  • Bolted Bonnet Threaded, Welded Seat Ring and Beveled Wedge Disc
  • Coating: Paint Coating or Natural Color as per customer’s requirement
  • ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M
  • Pressure Rating: Class 150 ~ Class 1500 ; PN16 ~ PN100
  • End Type: RF, FF, RTJ, BW
  • Mode of Operation: Hand-wheel, Gearbox, Electric, Pneumatic, etc.
  • Design and Manufacture: BS 1873 ASME B16.34 or DIN 3356
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: ASME B16.10 or DIN 3202 F1 / F32
  • Flange Ends Dimensions: ASME B16.5 or DIN 2543 ~ 2547, EN 1092-1
  • Butt-Welding Ends: ASME B 16.25
  • Inspection & Test: API 598 or DIN 3230

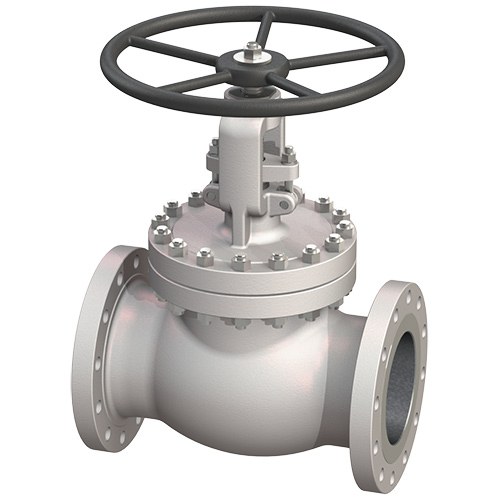

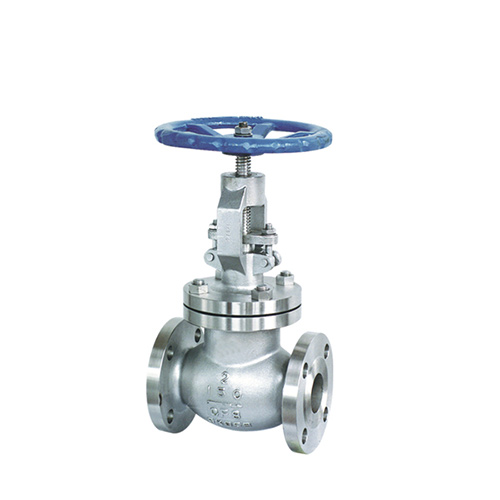

  • Cast Steel Globe Valve

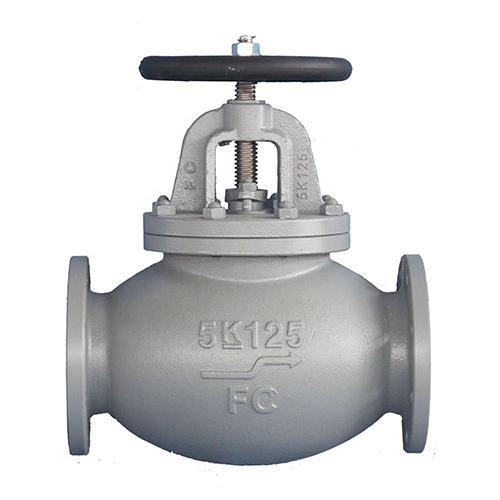

  • ANSI WCB Cast Steel Piston Globe Valve

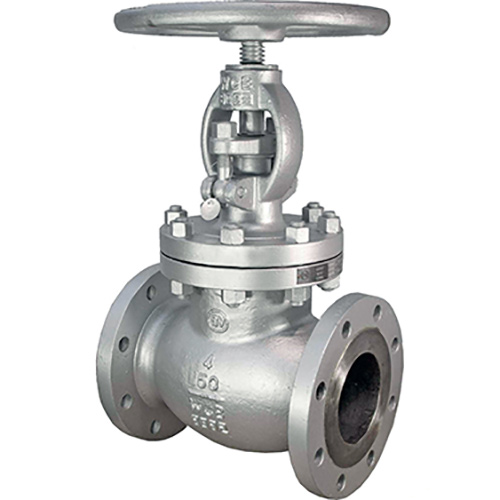

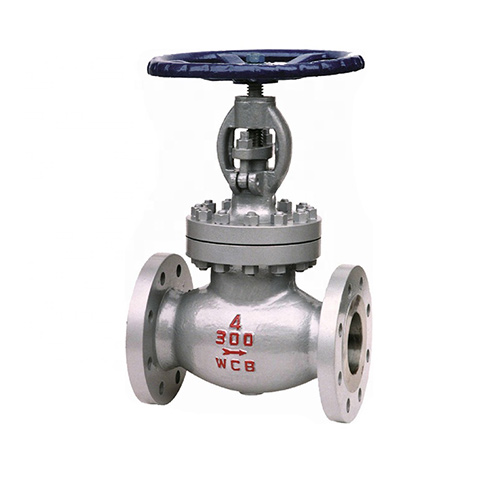

  • ASTM A216 WCB Cast Steel Globe Valve

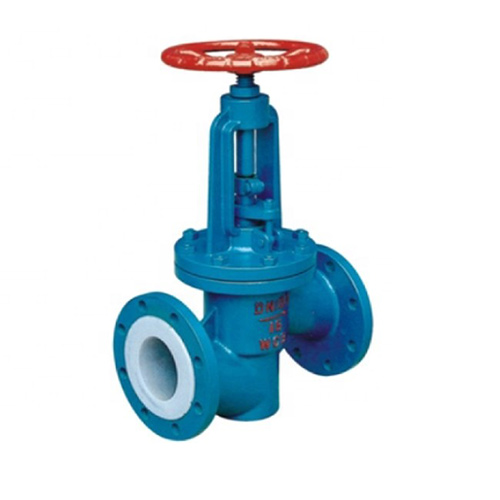

  • PTFE Lining Flange Cast Steel Globe Valve

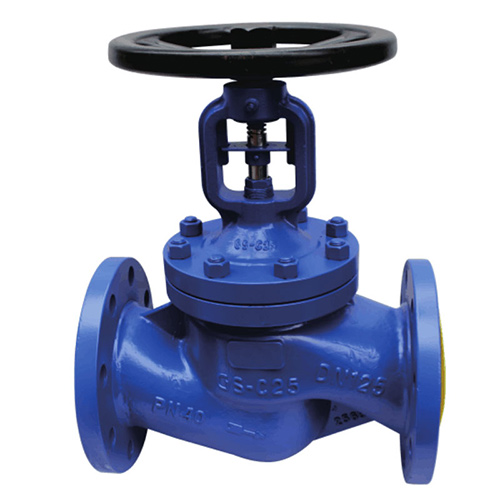

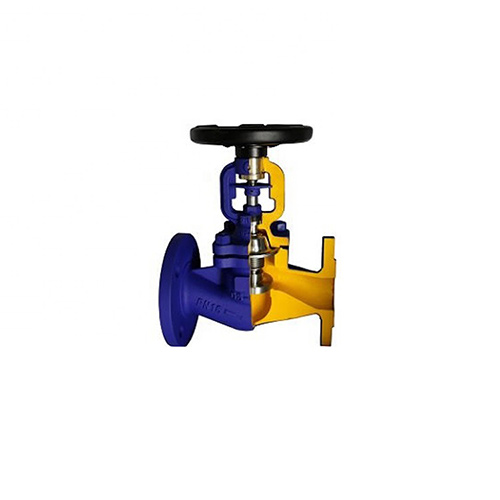

  • Thermal Bellow Seal Stop Globe Valves

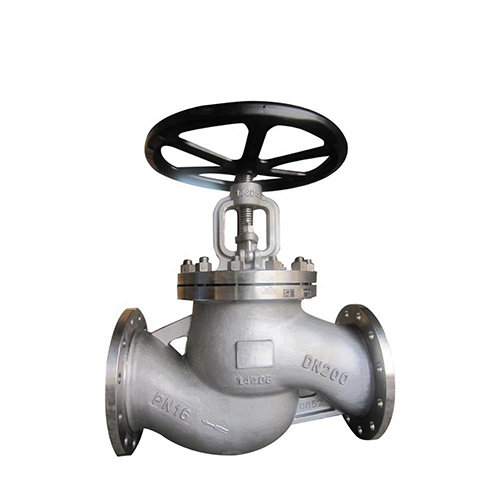

  • Screw Lift SDNR Steam Cast Steel Stop Globe Valve
