CONCENTRIC OR RESILIENT-SEATED BUTTERFLY VALVES: A Butterfly Valve is a quarter-turn rotary valves that are used to start, regulate, and stop flow. Butterfly Valve has compact design compare to other type of valves. They require less space and very efficient, light weight, quick operation, and has low-pressure drop and high-pressure recovery. Butterfly valves are use in the following application: air, gases, vacuum, slurry, steam, high-temperature and low-temperature media. There are two types of butterfly valve, a concentric or Resilient-seated Butterfly valves and an ECCENTRIC type. The eccentric type can be single, double, or triple-offset type. There are different kinds of butterfly valves, each adapted for different pressures and different usage.

  • Single Eccentric Butterfly Valve (also known as Single Offset Butterfly Valve)
  • Double Eccentric Butterfly Valve (also known as Double Offset Butterfly Valve)
  • Tripple Eccentric Butterfly Valve (also known as Tripple Offset Butterfly Valve)

  • Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, etc.
  • Disc Materials: Stainless Steel, Ductile Iron (Nickel Plated or Nylon Coated), etc.
  • Seat Material: EPDM, NBR (Buna-N), FKM (Viton), PTFE, etc.
  • Concentric Design and Bi-directional Service
  • Epoxy Powder Coating or Paint Coating
  • Quick 90 degrees On / Off operation
  • Simple and Compact Construction, Small Space, Light Weight
  • Size Range: NPS 1-1/2” ~ 48”  ;  DN40 ~ DN1200
  • Pressure Rating: Class 125 / Class 150  ;  PN6 / PN10 / PN16
  • Wafer type, Lug type and Double Flange type are all available
  • Mode of Operation: Handle Lever, Gearbox, Worm Gear, Electric, Pneumatic
  • Stainless steel body and stem design
  • Sizes from 1 1/2' - 12'
  • Designed with RTFE coated stainless steel bushings
  • Stem sealing by utilizing the seat as a primary seal
  • Double O-ring design isolates top bushing
  • Anti-static pin and spring eliminate static discharge
  • Stainless steel lever, gearbox or actuator
  • Stainless steel Q-pin retainer plate
  • Seat materials include: NBR, EPDM, Silicon, and Viton
  • RTFE and stainless steel bush with stainless steel spring pack

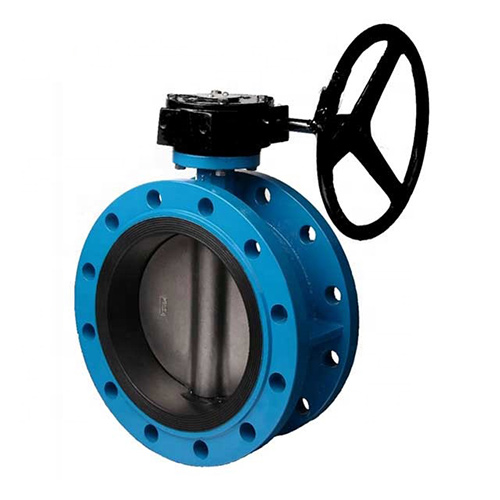

  • Concentric Butterfly Valve

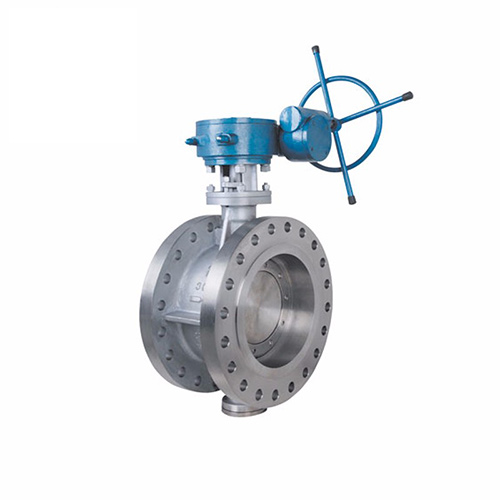

  • Concentric flange Stainless Steel Butterfly Valve

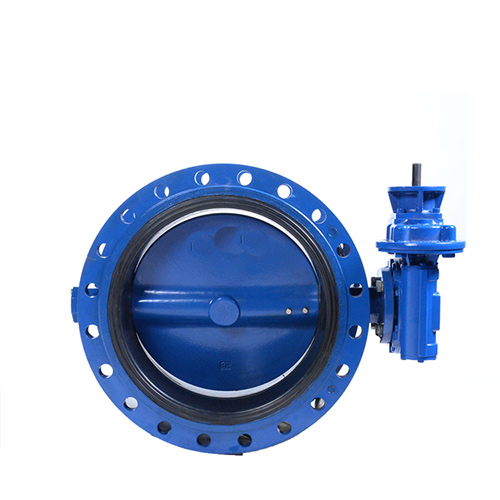

  • Flange, Disc Concentric Butterfly Valve

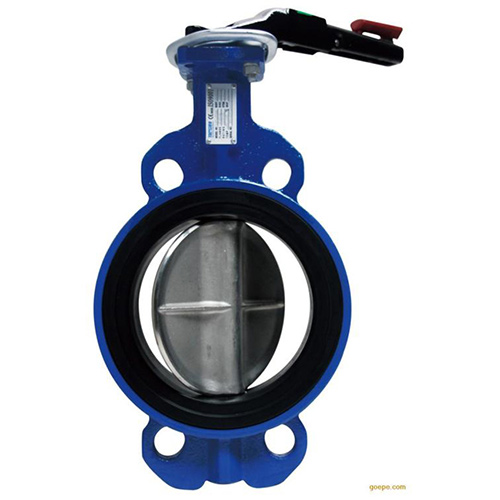

  • Handle Operated Concentric Rubber Lined acid resistant Butterfly Valve

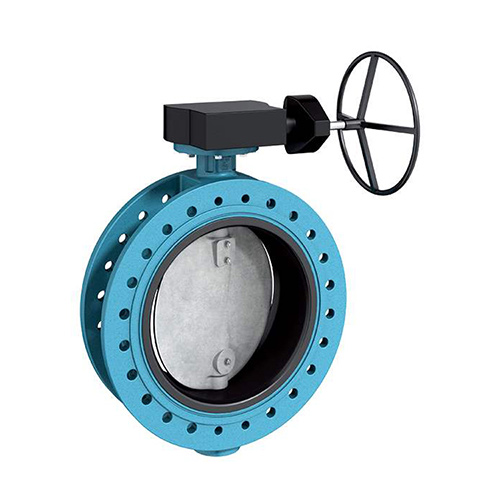

  • Ductile Iron Body Concentric Butterfly Valve

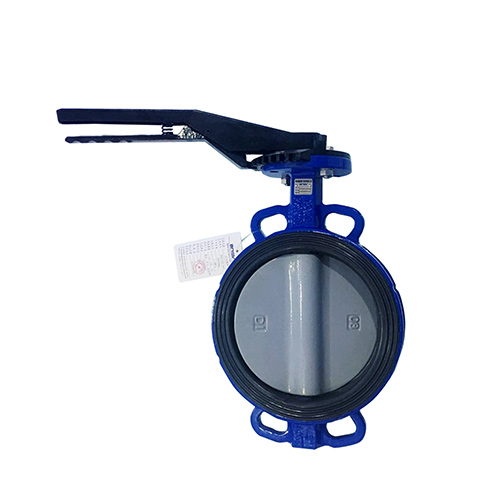

  • EPDM Coated Ductile Iron Concentric Butterfly Valve
