ECCENTRIC BUTTERFLY VALVES

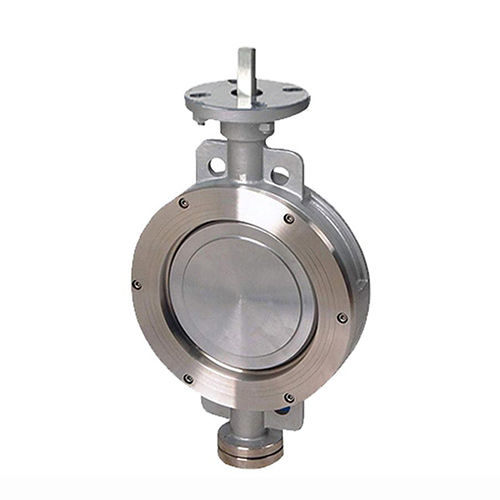

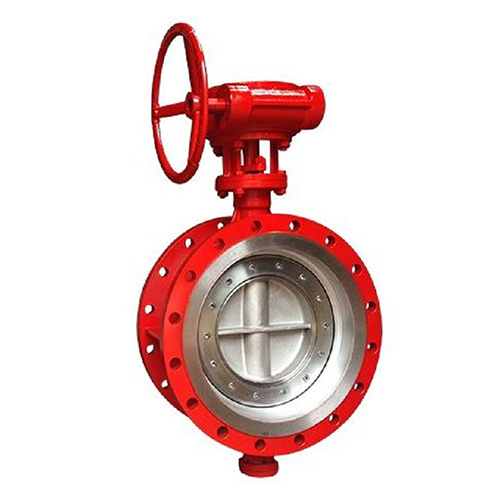

Double, Manual, Worm, Gear, Actuated, Double and Tripple offset

DESCRIPTION

ECCENTRIC BUTTERFLY VALVES: A Butterfly Valve is a quarter-turn rotary valves that are used to start, regulate, and stop flow. Butterfly Valve has compact design compare to other type of valves. They require less space and very efficient, light weight, quick operation, and has low-pressure drop and high-pressure recovery. Butterfly valves are use in the following application: air, gases, vacuum, slurry, steam, high-temperature and low-temperature media. There are two types of butterfly valve, a CONCENTRIC and an ECCENTRIC type. The eccentric type can be single, double, or triple-offset type. There are different kinds of butterfly valves, each adapted for different pressures and different usage.

  • Single Eccentric Butterfly Valve (also known as Single Offset Butterfly Valve)

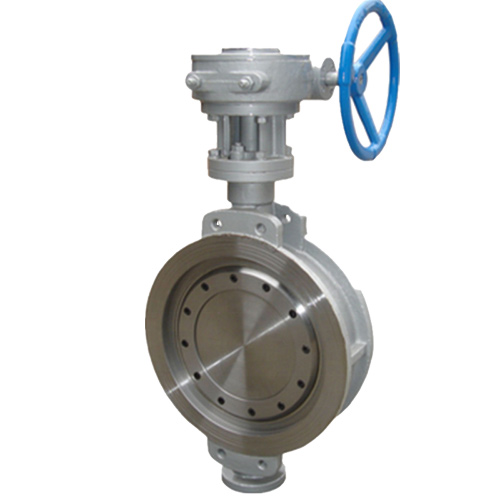

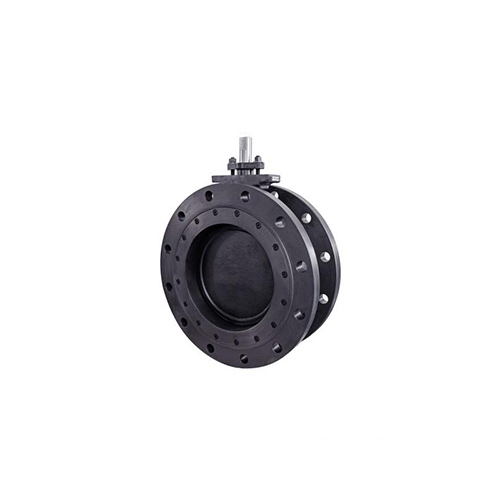

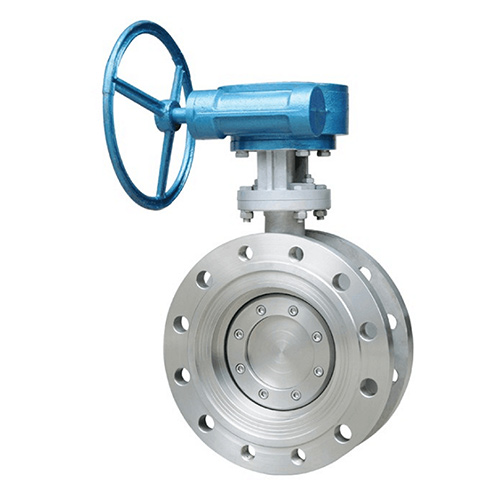

  • Double Eccentric Butterfly Valve (also known as Double Offset Butterfly Valve)

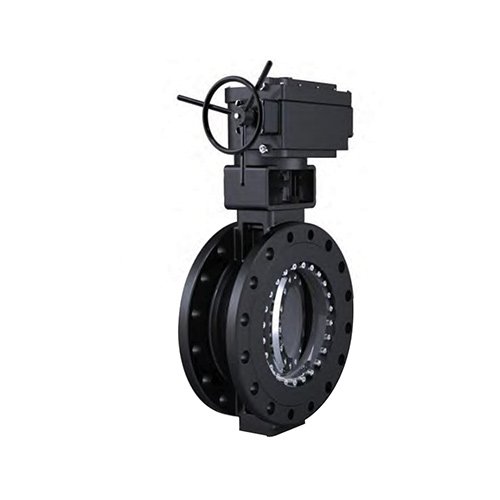

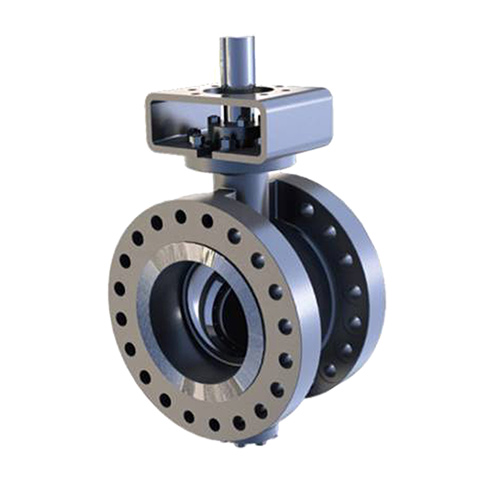

  • Tripple Eccentric Butterfly Valve (also known as Tripple Offset Butterfly Valve)

  • Valve Size:           DN50-1600, NPS 2-60
  • Pressure Class:  PN1-100, 150LB-600LB
  • Materials:            WCB, LCB, LC1, CF8, CF8M, CF3, CF3M, 4A, 5A, WC6, WC9, C95800
  • Design and Manufacturing Standard:       API 609, EN 593
  • Face to Face Standard:   API 609, EN 558, ISO 5752
  • Flange Dimension Standard:        ASME B 16.5, ASME B16.47, EN 1092-1, GOST 54432, JIS 2220
  • Pressure Test Standard:                API 598, EN 12266-1
  • Fire Safety Test Standard:             API607
  • Quality/Product Certifications:   ISO9001, ISO14001, ISO18001
  • Fugitive Emissions:          ISO 15848-1, API 622
  • NACE     NACE MR 0103 NACE MR 0175
  • Valve operator options: Handwheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
  • Shutoff Class:     API 598 (Zero Leakage),
  • Bore:     Full Bore
  • Connection Types:           Wafer type, Flange Type, Lug Type, Weld Type
  • Body Material: Ductile Iron, Carbon Steel, Austenitic Stainless Steel, Duplex Steel, Nickel Alloy, Titanium, Titanium Alloy, Nickel Aluminum Bronze
  • Disc Materials: Ductile Iron, Carbon Steel, or as per requirement.
  • Sealing Material: EPDM, NBR (Buna-N), FKM (Viton)
  • Double Eccentric Disc Design Ensures Minimal Wear and Provides Excellent Throttling Capabilities.
  • Replaceable Sealing Materials Ensures Optimum Seating Torque
  • Perfectly Machined Seat Ring Ensures Continued Tight Shut Off
  • Tilted Disc Releases the Compression, which Extends the Durability
  • Shaft of Stainless Steel with Self-Lubricating Bearings
  • Size Range:  8” ~ 60”
  • Pressure Rating: Class 125 / Class 150 ; PN 6/ PN10 / PN16
  • Mode of Operation: Gearbox, Worm Gear, Electric, Pneumatic
  • Design and Manufacture: EN593, API 609
  • Face to Face Dimensions: ASME B16.10, EN 558, AWWA C504
  • Flange Ends Dimensions: ASME B16.5 ASME B16.47 or DIN 2501 PN6 / 10 / 16
  • Inspection & Test: API 598 , ISO 5208, EN 12266
  • Top Mounting Pad Standard: ISO 5211
