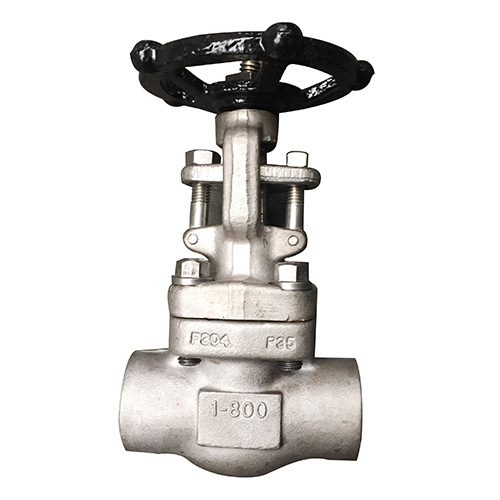

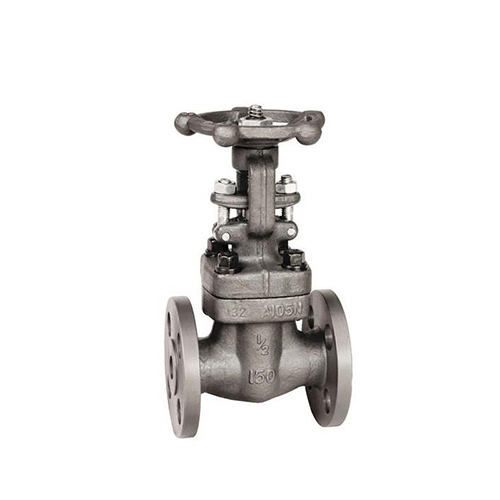

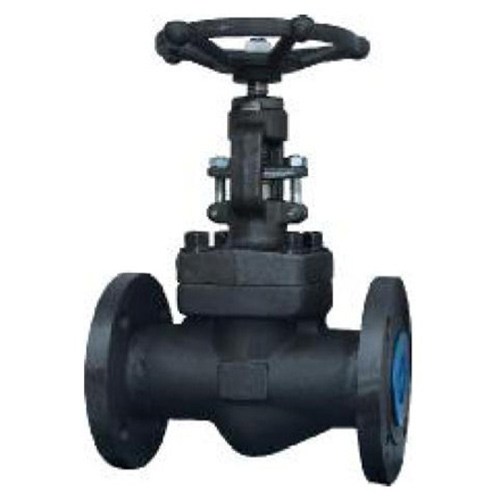

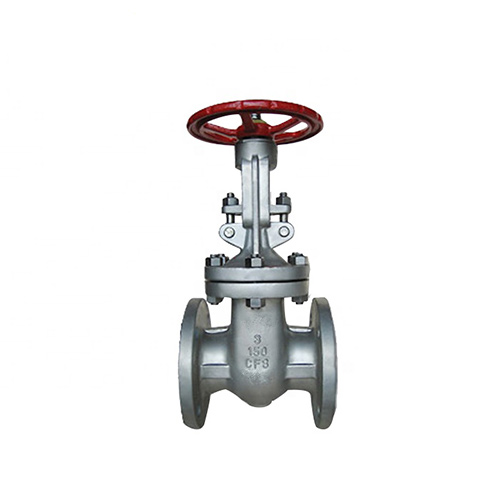

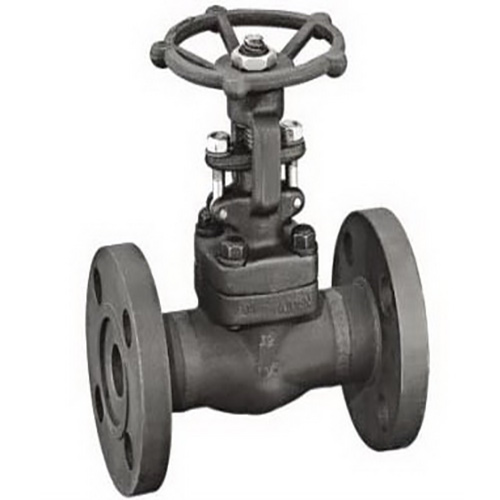

ASTM A105, Forged Steel, Socket Weld, Carbon Steel, SS Steel, Gate Valves


FORGED STEEL GATE VALVES: Gate valves are isolation valves, and it is primarily designed to control flow, and when a straight-line flow of fluid and minimum flow restriction are needed. In service, these valves generally are either fully open or fully closed. Gate valves can be divided into two main types: Parallel and wedge-shaped. The parallel gate valves use a flat gate between two parallel seats, and a popular type is the knife gate valve designed with a sharp edge on the bottom of the gate.

  • Valve Size:    1/4 “–2”, DN10–DN50
  • Pressure Class:  150LB–2500LB, PN16–PN420
  • Material:    Carbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22
  • Design/Manufacturing Standard:  API602, ASME 16.34, BS 5352, BS 6364
  • Face to Face Standard:   API 602
  • Flange Dimension Standard:   SW Socket welding ends according to ASME B16.11, BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1
  • Pressure Test Standard:  API 598
  • Quality/Product Certifications     ISO9001, ISO14001, ISO18001
  • Fugitive Emission:            ISO 15848-1, API 622
  • NACE:    NACE MR 0103 NACE MR 0175
  • Valve operation:   Handwheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator
  • Shutoff Class:   API 598 (Zero Leakage), API 6D
  • Bore:   Full Bore, Reduced Bore
  • Process Connection Type:   W, NPT, BW, RF, RTJ
  • Design and Manufacture: API 602, BS 5352
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: MFR’s Standard
  • Flange Ends Dimensions: ASME B16.5 or DIN EN 1092
  • Butt-Welding Ends: ASME B 16.25 or EN 12627
  • Socket Welding Ends: ASME B 16.11
  • Threaded Ends: ASME B 1.20.1
  • Inspection & Test: API 598 or DIN 3230
  • Type: Cast Iron
  • Pressure: Up to PN40
  • Temperature: -76°F – +1202°F
  • Size: NPS 2-60
