FORGED STEEL GLOBE VALVES

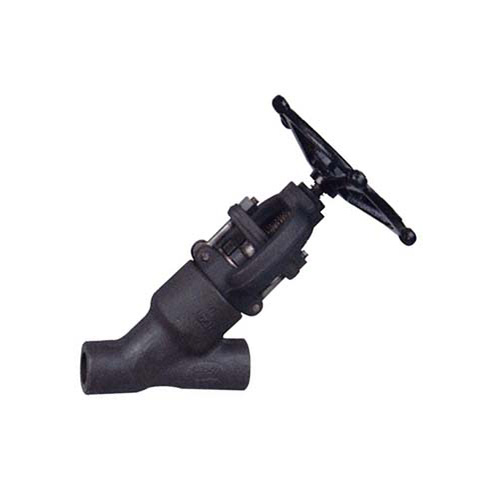

API, Forged, Manual, Y-type globe ...

DESCRIPTION

FORGED STEEL GLOBE VALVES: Globe valve is used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body. They are linear motion valves typically design to control flow or pressure and complete shutoff. There are Cast Steel, Cast Iron, Forged Steel and other materials as per requirement and applications.

  • Body Material: Forged Carbon Steel, Stainless Steel, Alloy Steel, etc.
  • Construction: Optional Bolted bonnet, Welded bonnet and Pressure seal bonnet.
  • OS & Y, Outside Screw and Yoke.
  • Optional Full or Reduce port.
  • Size Range: NPS 1/2” ~ 24” ; DN15 ~ DN50
  • Pressure Rating: Class 150 ~ Class 2500 ; PN140 ~ PN320
  • End Type: NPT or BSP threaded, SW, RF, BW
  • Mode of Operation: Hand-wheel, Wrench nut.
  • Design and Manufacture: API 602, BS 5352
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: MFR’s Standard
  • Flange Ends Dimensions: ASME B16.5 or DIN EN 1092
  • Butt-Welding Ends: ASME B16.25 or EN 12627
  • Socket Welding Ends: ASME B16.11
  • Threaded Ends: ASME B1.20.1
  • Inspection & Test: API 598 or DIN 3230

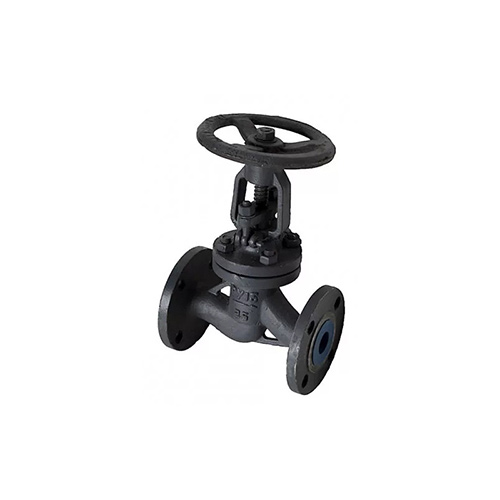

  • API 602 800lbs Forged Steel ASTM A105 Globe Valve
  • API 602 800lbs Forged Steel ASTM A105 Globe Valve

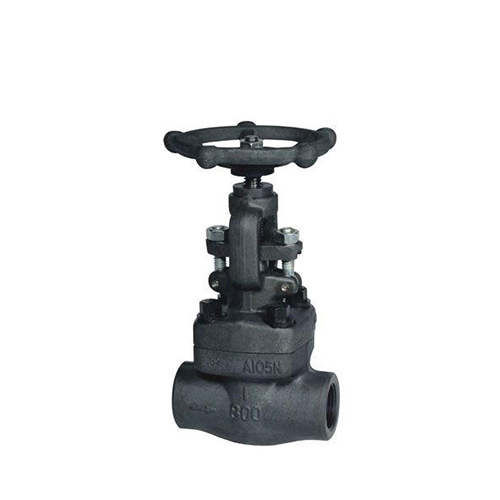

  • API602 Industrial Forged Steel Stop Globe Valve

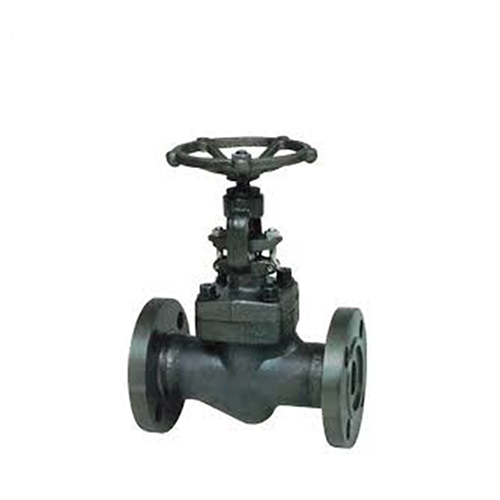

  • ANSI manual A105 Forging Flange Globe Valve

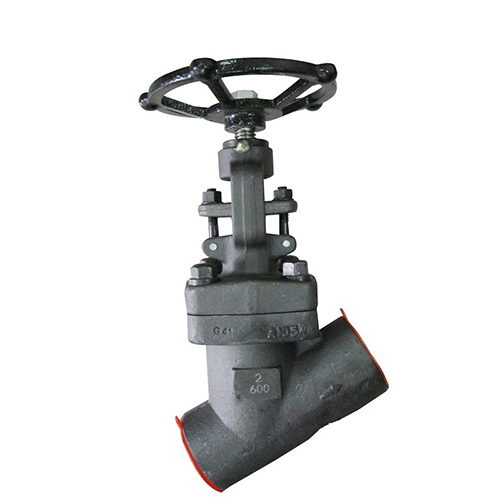

  • API Hand Wheel Operated SW Ends Y-Type Forged Steel Globe
