- Size: 2 “–60”, DN50–DN1200
- Pressure Class: 150LB–2500LB, PN16–DN420, JIS10-20K
- Materials: A105, LF2, F316, F11, F304, F316, F51 , F55;
- Design and Manufacturing Standard: API 6D, API 608, ASME B16.34, ISO 17292, BS5351;
- Face to Face Standard: ASME B16.10, BS 558, BS12982, ISO 5752;
- Flange Dimension Standard: ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627;
- Pressure Test Standard: API598, API 6D, BS12569;
- Fire Safety Test Standard: API 6FA API 607
- Quality/Product Certifications: ISO9001, ISO14001, ISO18001;
- Fugitive Emissions: ISO 15848-1, API 622;
- Nance: NACE MR 0175
- Valve operation: Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator;
- Shutoff Class: API 598 (Zero Leakage), API 6D;
- Bore: Full Bore, Reduced Bore
- Connection Type: SW, NPT, BW , RF, RTJ;
DESCRIPTION

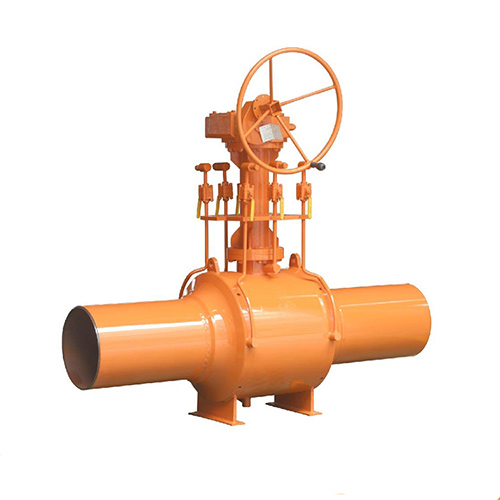

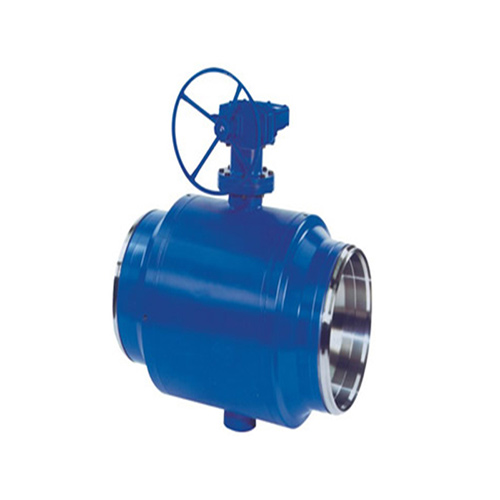

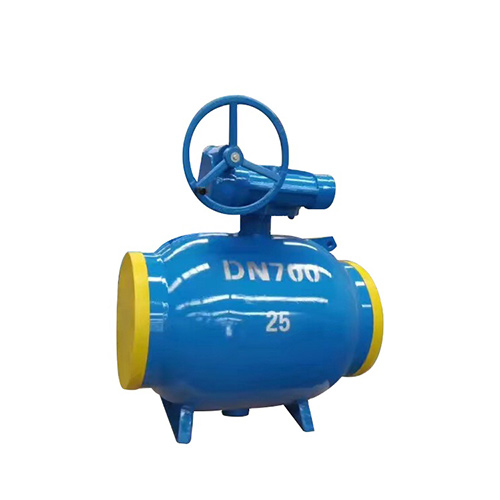

FULLY WELDED BALL VALVES: A Ball Valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. API 598 API 6D 250KG Weight Acid Resistance Full-Welded Ball
A full port or sometimes called full bore, ball valve has a straight flow path where there is not a reduction of flow as it travels through the valve. In other words, the internal diameter of the pipe or tubing at the inlet and outlet of the valve has the same diameter as the interior of the ball valve
A full port or sometimes called full bore, ball valve has a straight flow path where there is not a reduction of flow as it travels through the valve. In other words, the internal diameter of the pipe or tubing at the inlet and outlet of the valve has the same diameter as the interior of the ball valve
- Design and Manufacture: API 608 , API 6D or DIN 3356
- Socket Welding Ends: ASME B16.11Fire-Safe Standard: API 607 ,
- Butt-Welding Ends: ASME B16.25 or DIN EN 12627
- Top Mounting Pad Standard: ISO 5211Flange Ends
- Dimensions: ASME B16.5 or DIN 2543-2545
- Threaded Ends Connections: ASME B1.20.1 or ISO 228 or DIN 2999
- Inspection & Test: API 598 , API 6D or DIN 3230
- Fire-Safe Standard: API 607 , API 6FA
- Top Mounting Pad Standard: ISO 5211
- API 6FAFace to Face Dimensions: ASME B16.10 or DIN 3202
- Stainless Steel Fully Welded Ball Valve

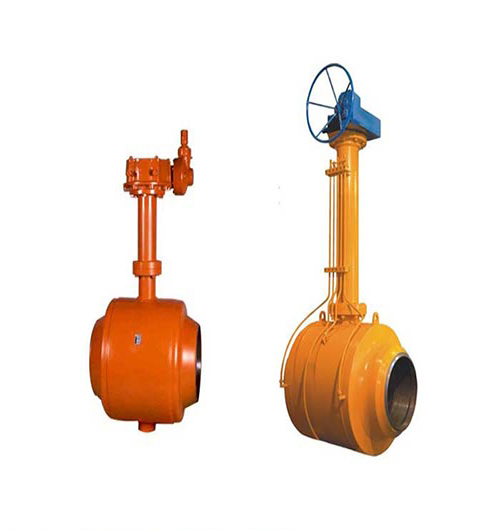

- Underground or Buried Fully Welded Ball Valve
- Forged Fully Welded Ball Valve

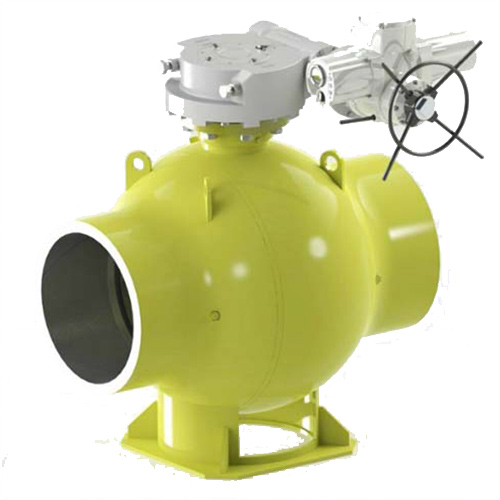

- Motorized Actuation Fully Welded Ball Valve
- Motorized Fully Welded Ball Valve
- Acid Resistance Fully Welded Ball Valve
