INDUSTRIAL GATE VALVES

API 6D, API 600, Slab WCB, Through Conduit, Wedge, Actuated Knife, Parallel, Rising Stem, Wellhead Flap

DESCRIPTION

INDUSTRIAL GATE VALVES: Gate valves are isolation valves, and it is primarily designed to control flow, and when a straight-line flow of fluid and minimum flow restriction are needed. In service, these valves generally are either fully open or fully closed. Gate valves can be divided into two main types: Parallel and wedge-shaped. The parallel gate valves use a flat gate between two parallel seats, and a popular type is the knife gate valve designed with a sharp edge on the bottom of the gate.

  • Valve Size:    2''– 48'' DN50 -DN1200
  • Pressure Class:  150LB–2500LB
  • Standard: API 600
  • Operation: Hand-wheel, Gearbox, Electric, Pneumatic/Actuator
  • Material:    Carbon Steel, Ductile, Stainless Steel, Alloy, Duplex Steel
  • Process Connection Type:   BW, RF, RTJ
  • Design and Manufacture: API 602, API 6D BS 5352
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: MFR’s Standard
  • Flange Ends Dimensions: ASME B16.5 (2” ~ 24”) , ASME B16.47 (26” & up), or DIN EN 1092
  • Butt-Welding Ends: ASME B 16.25 or EN 12627
  • Socket Welding Ends: ASME B 16.11
  • Threaded Ends: ASME B 1.20.1
  • Inspection & Test: API 6D API 598 or DIN 3230

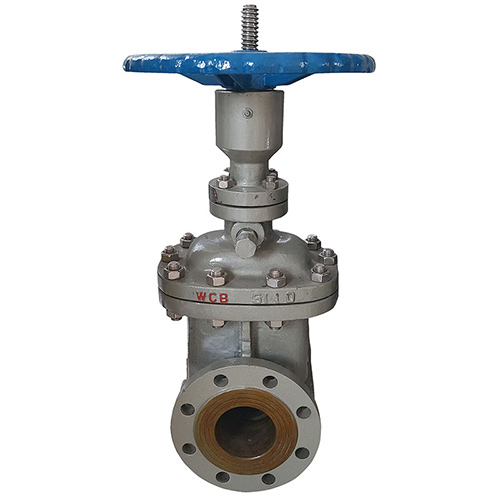

  • Rising Stem Parallel Gate Valve

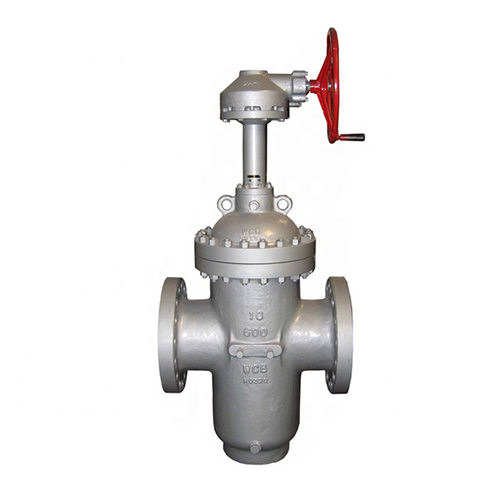

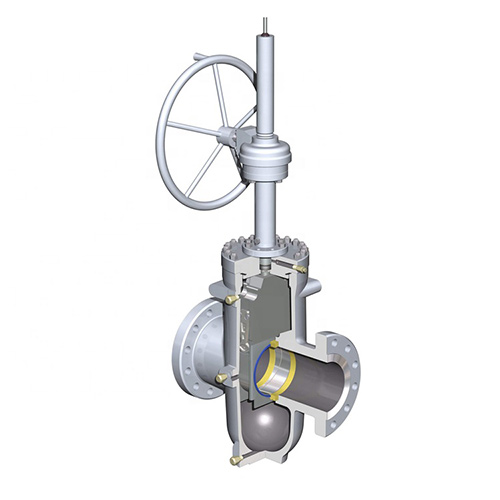

  • Slab Gate Valve

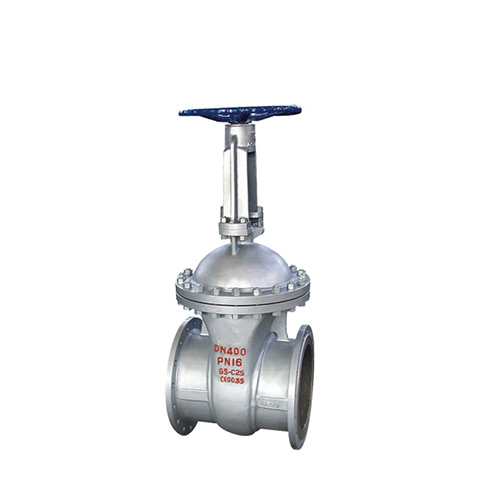

  • Wedge Gate Valve

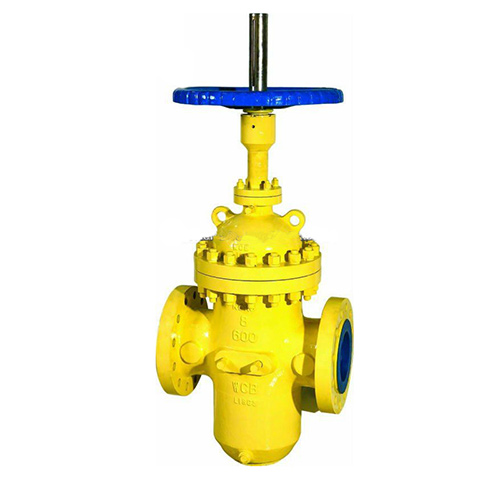

  • Through Conduit Gate Valve

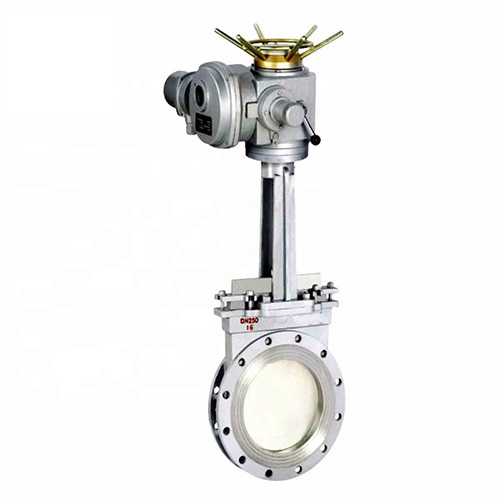

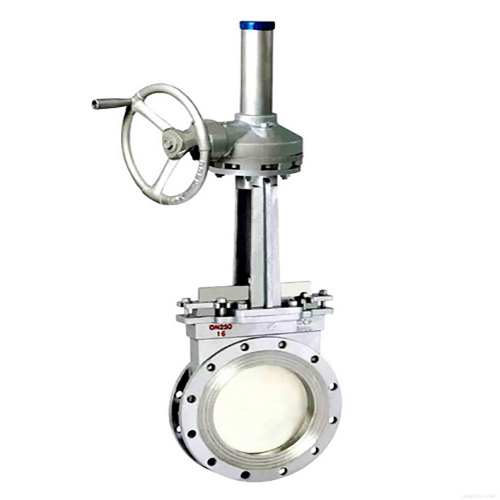

  • High Pressure Lug Knife Gate Valve

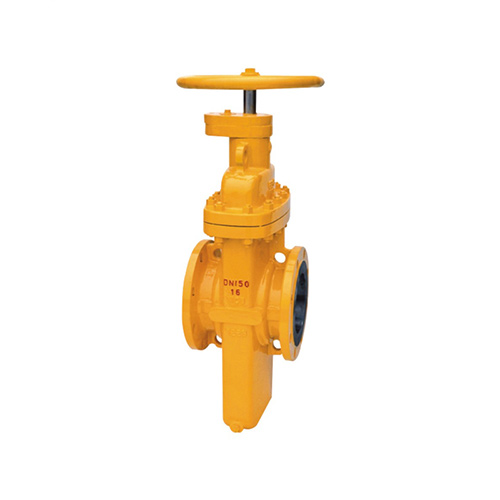

  • Medium Flap Wellhead Gate Valve
  • Pressure Seal Gate Valve
