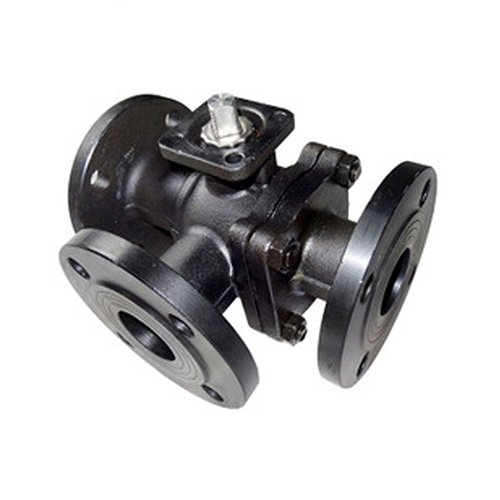

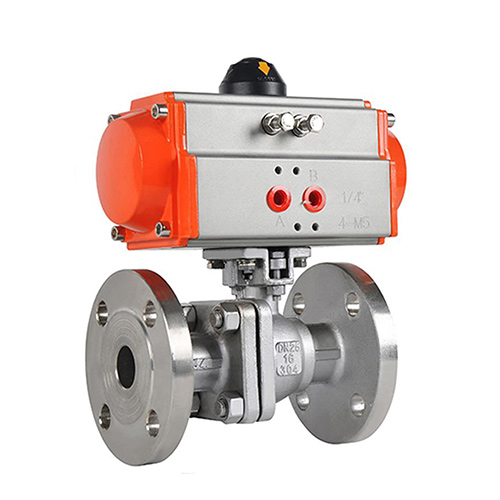

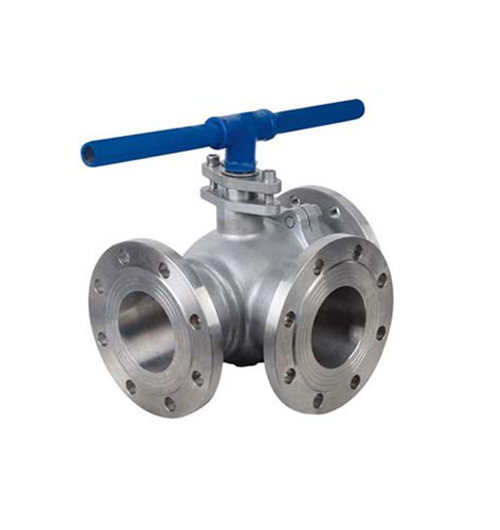

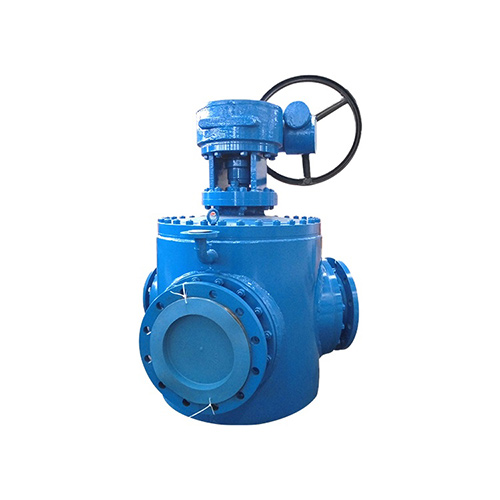

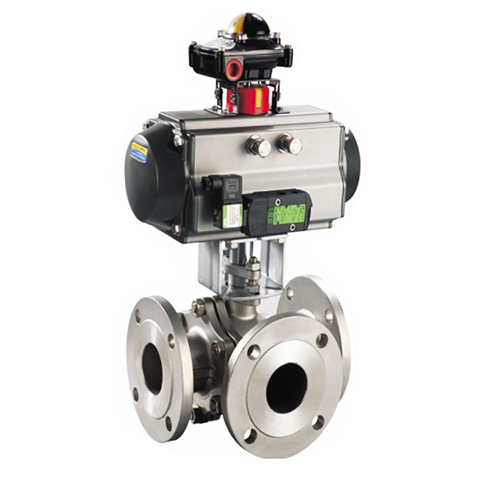

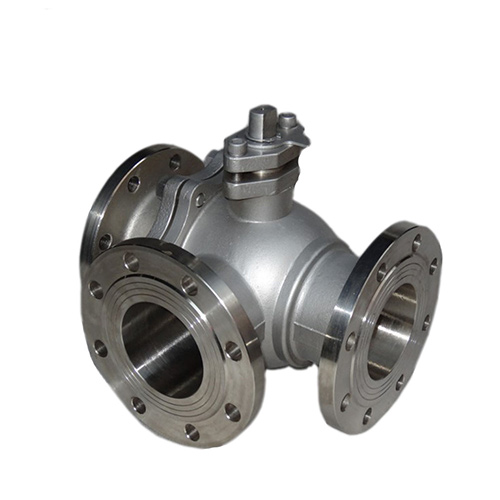

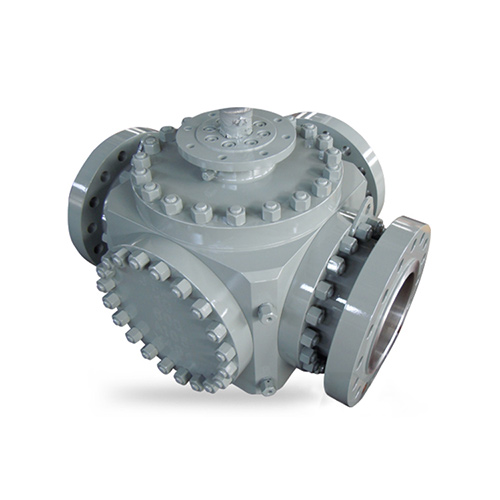

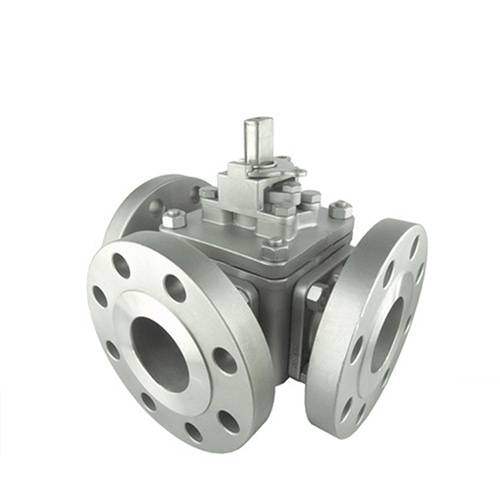

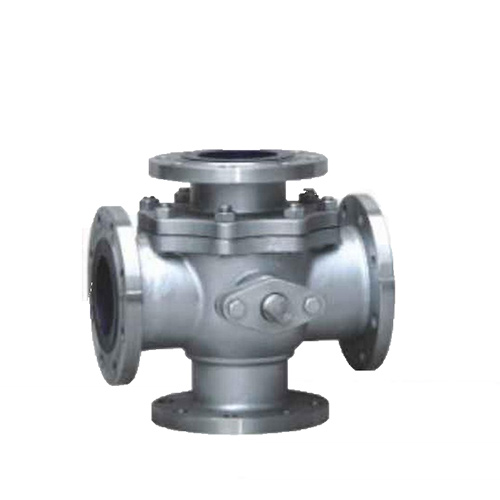

MULTI-WAY BALL VALVES

Two-way, Three-way, Four-way Ball Valves in Cast Iron, SS, Carbob Steel, Ductile

DESCRIPTION

MULTI-WAY BALL VALVES: Two-way, Three-Way or Four-Way ball valves has equal multi-directional ports around the valve chamber with cylindrical, tapered, or ball plug. Multi-way are generally used to isolate and multi simultaneously bypass a sampling cylinder installed on a pressurized water line. It is useful to take a fluid sample without affecting the pressure of a hydraulic system and to avoid degassing.

  • Valve Size:  1 1/2'″–24″  ( DN40-DN600).
  • Pressure Class:  150LB PN10/16/20/25
  • Strainer screen:  Mesh, Perforated,
  • Materials:  Carbon Steel, Stainless Steel, Cast iron, Ductile Iron,
  • Body Material:  ASTM A216 WCB
  • Design Standard:  ASME B16.10
  • Standard:  ASME B16.5 EN-DIN1092-1
  • Dimension Standard:  ASME B 16.5, ASME B16.47, ANSI B16.1, DIN 3202-F1, BS 2080.
  • Pressure Test Standard:  API 598
  • Fire Safety Test Standard:  API 607
  • Shutoff Class:  API 598 (Zero Leakage), API 6D
  • Connection Type:  RF, BW.
  • Flange Basket strainer stainless steel filter with drain plug
  • Basket strainer with stainless steel filter
  • Body:ductile iron GGG40
  • Flange ANSI B16.1/ANSI B16.5--DIN PN10/PN16
  • Screen: Mesh: SS304.
  • Pressure Rating:  150lb~300lb
  • Size:  1/2” ~12” ; DN15-DN300 PN16-PN40
  • Material: A105N, F304(L), F316(L), LF2, F11, F51, F53 etc.
  • Operated Type: A105N, F304(L), F316(L), LF2, F11, F51, F53 etc.
  • Design and manufacturing: API 6D / ASME B16.34
  • Structure: Y-Type
  • Flange connection: ASME B16.5
  • Butt-Weld Ends:  ASME B16.25
  • Socket-Weld Ends:  ASME B16.11
  • Screwed Ends:  (NPT) ANSI/ASME B1.20.1
  •  Medium: W.O.G.
