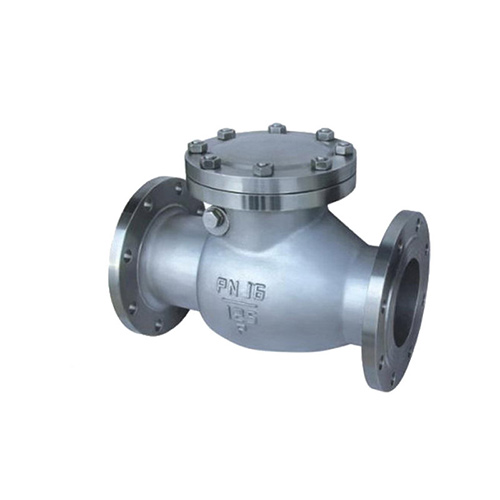

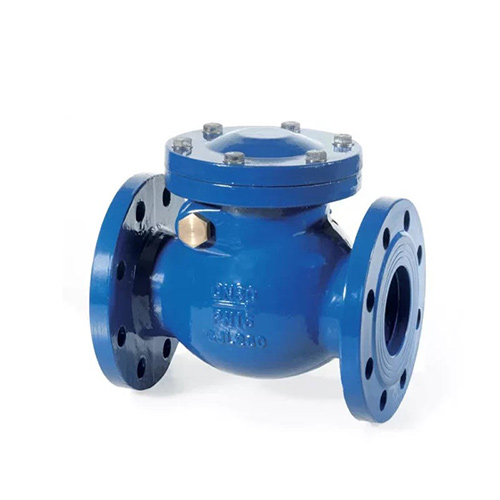

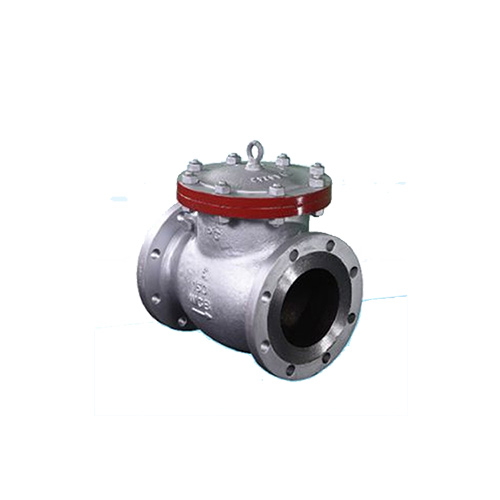

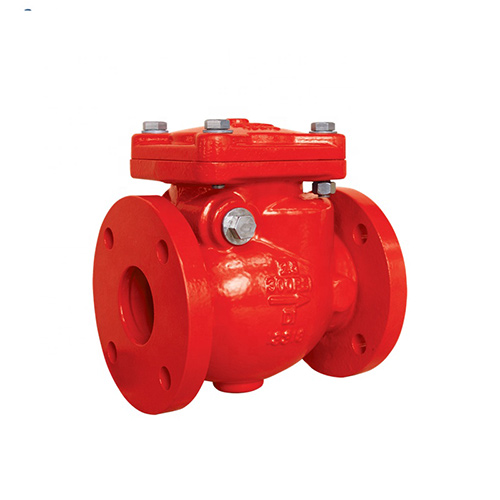

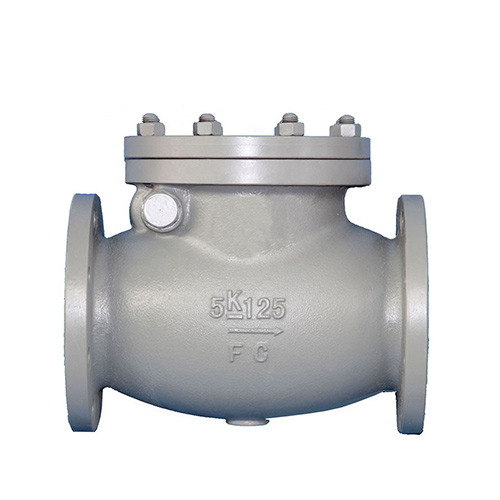

Non-Return, Buttweld, Full Bore, Cast Iron, Cast Steel, Flange Swing Check valves


SWING CHECK VALVES: Check Valves are one-way flow valve or self-actuating valves that minimize the reversal of fluid flow in a piping system and pump components. Check Valves are opened by the force of fluid in motion,flowing in one direction. They are commonly installed in pipeline system to prevent back-flow. If for some reasons the flow turns, the valve will close to protect the piping system and components from water hammer. Check Valves are classified as one-way directional control valves. Check valve may be installed independently in a line to allow one-direction flow, and they are available in different standard and designs.

  • Available in sizes 2' - 48'
  • Ductile Iron Construction for 250 PSI service
  • Pressure Rating: Class 150 ~ Class 1500 ; PN10 ~ PN160
  • End Type: RF, FF, RTJ, BW
  • 100% Flow area
  • Energy efficient
  • Fusion Bonded Epoxy - interior and exterior
  • Full Domed Access Cover with Vent Port
  • Side or Bottom Mounted Oil Cushions available
  • Closure Options: Lever & Weight, Air Cushion, Lever & Spring
  • Manufactured under a certified ISO 9001 quality system
  • Design and Manufacture: BS1868  or  DIN3840
  • Pressure-Temperature Rating: ASME B16.34
  • Face to Face Dimensions: ASME B16.10  or  DIN 3202
  • Flange Ends Dimensions: ASME B16.5 , ASME B16.47  or  DIN 2543 ~ 2546, EN1092-1
  • Butt-Welding Ends: ASME B 16.25  or  EN 12627
  • Inspection & Test: API 598  or  DIN 3230
