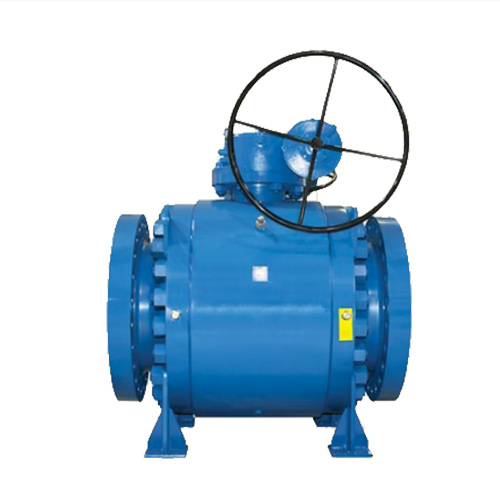

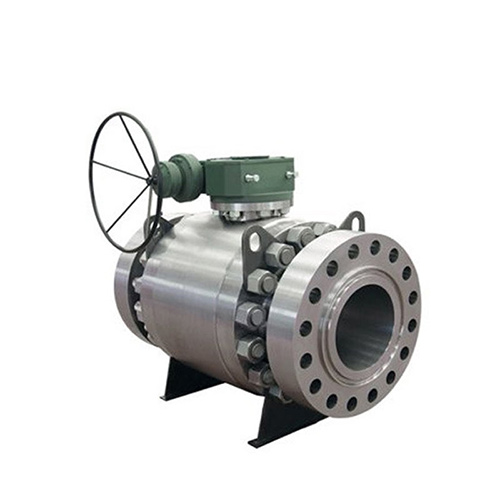

TRUNNION BALL VALVES

TRUNNION BALL VALVES: Stainless Steel, WOG, Forged, Mounted Ball Valves

DESCRIPTION

TRUNNION BALL VALVES: Ball Valves are form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. Trunnion Ball ValveS comes in full or Reduced Bore, Connection: RF, RTJ, BW or PE, Side entry, top entry, Double Block & Bleed (DBB),Double Isolation & Bleed (DIB) Emergency seat and stem injection, Anti-static Device, Anti-blow out Stem, Cryogenic or High Temperature Extended Stem.

  • Size:  2 “–60”, DN50–DN1200
  • Pressure Class:  150LB–2500LB, PN16–DN420, JIS10-20K
  • Materials:  A105, LF2, F316, F11, F304, F316, F51 , F55;
  • Design and Manufacturing Standard:  API 6D, API 608, ASME B16.34, ISO 17292, BS5351;
  • Face to Face Standard:  ASME B16.10, BS 558, BS12982, ISO 5752;
  • Flange Dimension Standard:  ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627;
  • Pressure Test Standard:  API598, API 6D, BS12569;
  • Fire Safety Test Standard:  API 6FA API 607
  • Quality/Product Certifications: ISO9001, ISO14001, ISO18001;
  • Fugitive Emissions:  ISO 15848-1, API 622;
  • Nance: NACE MR 0175
  • Valve operation: Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator;
  • Shutoff Class: API 598 (Zero Leakage), API 6D;
  • Bore:  Full Bore, Reduced Bore
  • Connection Type:  SW, NPT, BW , RF, RTJ;
  • Design and Manufacture: API 608 , API 6D or DIN 3356
  • Socket Welding Ends: ASME B16.11Fire-Safe Standard: API 607 ,
  • Butt-Welding Ends: ASME B16.25 or DIN EN 12627
  • Top Mounting Pad Standard: ISO 5211Flange Ends
  • Dimensions: ASME B16.5 or DIN 2543-2545
  • Threaded Ends Connections: ASME B1.20.1 or ISO 228 or DIN 2999
  • Inspection & Test: API 598 , API 6D or DIN 3230
  • Fire-Safe Standard: API 607 , API 6FA
  • Top Mounting Pad Standard: ISO 5211
  • API 6FAFace to Face Dimensions: ASME B16.10 or DIN 3202
  • Packing Details:
  • Inner: Polybag,
  • Outer: Export Standard Plywood Case
