BUTTWELD FITTINGS: 180, 90, 45 DEGREE ELBOW, TEE, ECCENTRIC & CONCENTRIC, STUB END, ASTM A234, A403, A815, B366



Buttweld Fittings: 45, 90, 180 degree Elbow, Concentric/Eccentric Rdeucer, End Cap, Equal & reducing Tee and Cross.

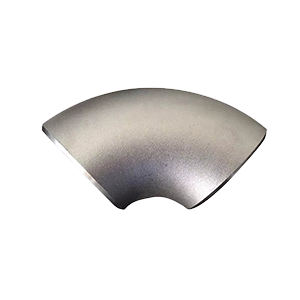

  • 45 Elbow
  • 90 Elbow
  • 180 Elbow
  • LR (Long Radius Elbow)
  • SR (Short Distance Elbow)

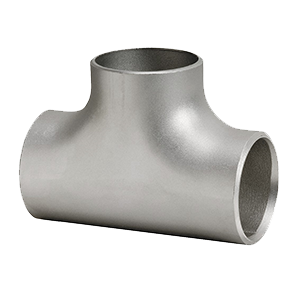

  • Equal Tee
  • Reducing/Unequal Tee
  • Eccentric Reducer
  • Concentric Reducer
  • End Cap
  • Long Stub End
  • Short Stub End
  • Lap Joint Stub End
  • End Cap
  • 180 Return Bend
  • Equal Tee

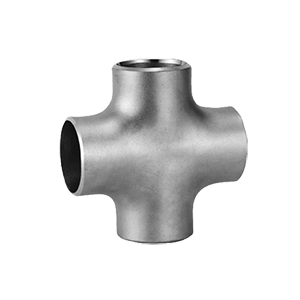

  • Equal Cross
  • Reducing Unequal Cross
  • Welded Fittings
  • Seamless Fittings


Buttweld Fittings Material: ASTM A234, A403, A815, B366




Standard / Material / Grade


Standard and Specification

Type Seamless, ERW, Weld, Fabricated
Form Elbow, 180 Degree Elbow, Long Radius Elbow (LR), Short Radius Elbow (SR)
Dimension ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size Seamless ( 1/2' ~ 24'), ERW, Welded, Fabricated (1/2' ~ 48').
Thickness Sch 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.



180 Degree Elbow Material & Grade

Carbon Steel ASTM A234, ASME SA234, WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65/70
Alloy Steel ASTM/ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Stainless Steel ASTM A403, WP316./316L, ASTM A403 SA/A774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN 4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex ASTM A815, ASME SA815, UNS No. S31803, S32205, UNS S32750 S39950, Werkstoff No. 1.4462
Nickel Alloy

ASTM B336, ASME SB336, Nickel 200 (UNS No.No2200) Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) Inconel 800 (UNS No. N008800) Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N066000), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),  Hastelloy C276 (UNS No. N010276), Alloy 20 (UNS No. N08020), Titanium  (Grade I & II), Cupro-Nickel 70/30 CuNi10Fe1Mn, CuNi30Mn1Fe

Low Teperature Carbon Steel ASTM A420 WPL3, A420 WPL6
