WELLHEAD CHRISTMAS TREE

PRODUCTS




API 6A WELLHEAD CHRISTMAS TREE AND CHRISTMAS THREE CAP


  • Working Pressure: 2000 ~20000psi N
  • ominal Bore: 2-1/16 ~ 7-1/16
  • BORE: 7 1/16--29 1/2
  • Material Class: AA、BB、CC、DD、EE、FF、HH

Drilling Spool


  • Material Class: AA、BB、CC、DD、EE、FF、HH
  • Working Pressure: 2000 ~15000psi
  • Nominal Bore: 71/16-291/2
  • Working Temperature: -46°C~121°C(Class LU)

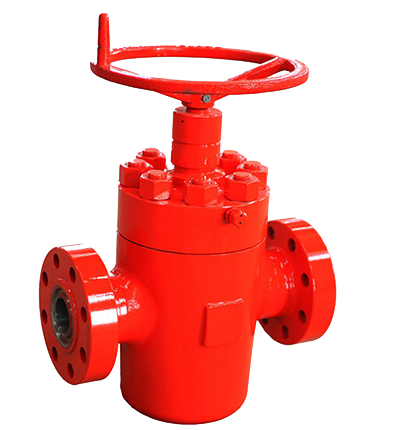

API Oilfield Valve


  • Type: Cameron FC Manual Gate Valves
  • Size: 5 1/8'
  • Presure Rating: 15000 psi
  • Certification: API 6A

Wellhead Blind Flange For Casing head


  • Material: Carbon, tainless, and ALLOY, Steel
  • Class: 150 -2500lbs
  • Material and sizes per requirements

Tri Cone Drill Bits


  • Size: 9 7/8'' (250mm)
  • Application: Energy & Mining
Contact us for immediate quote 24/7

API 6A WELLHEAD CHRISTMAS TREE AND CHRISTMAS THREE CAP


  • API 6A wellhead Christmas Tree


    API material grade AA,BB,CC,EE,FF, product performence to meet the national corrosion engineering association NACE standard MR0175 anti-corrosion requirements.

  • API 6A wellhead Christmas Tree


    API material grade AA,BB,CC,EE,FF, product performence to meet the national corrosion engineering association NACE standard MR0175 anti-corrosion requirements.

  • API6a Oilfield Drilling Christmas Tree


    API material grade AA,BB,CC,EE,FF, product performence to meet the national corrosion engineering association NACE standard MR0175 anti-corrosion requirements.

  • API 6A wellhead


    Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary • Also apply to acid fracturing, water injection and test service

  • API 6A Thermal Recovery Wellhead And Christmas Tree


    API 6A standard connections, Separate stage for each drilling phase, Automatic slip hangers, Reliable quality, easy installation and maintenance.

  • API 6A wellhead oil well Christmas tree


    Tree cap and gauge, Tree adapter, Swab valve, Kill wing valve, Production wing valve, Surface choke, Master Valves (Upper and Lower master valves), Tubing head adapter, Production string.

  • API 6A wellhead oil well Christmas tree


    Tree cap and gauge, Tree adapter, Swab valve, Kill wing valve, Production wing valve, Surface choke, Master Valves (Upper and Lower master valves), Tubing head adapter, Production string.

  • API 6A wellhead oil well Christmas tree


    Tree cap and gauge, Tree adapter, Swab valve, Kill wing valve, Production wing valve, Surface choke, Master Valves (Upper and Lower master valves), Tubing head adapter, Production string.

  • API 6A wellhead oil well Christmas tree


    Tree cap and gauge, Tree adapter, Swab valve, Kill wing valve, Production wing valve, Surface choke, Master Valves (Upper and Lower master valves), Tubing head adapter, Production string.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • Drilling Adapter Sool and Casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.

  • API 6A wellhead casing head


    API Spec.6A ,ISO 10423 and GB/T22513, and can also be processed and customized according to actual needs of the customer. It can meet the requirement of casing, tubing suspension, annulus seal, acidifying and fracturing, oil and gas production in the process of drilling, cementing, oil and gas production.




  • TUBING HAED
  • CASING HEAD
  • WELL HAED CHRISTMAS TREE
  • OIL WELL BEAM PUMBING UNIT
  • CASING CEMENTING HEAD
  • DOUBLE CEMENTING HEAD
  • CASING CENTRALIZER
  • CEMENTING BASKET/UMBRELLA
  • STOP COLLAR
  • CEMENT PLUG
  • ESP CROSS COUPLING CABLE PROTECTOR
  • COMPLETION TOOLS
  • CASING LINEAR HANGER
  • PACKER BRIDGE

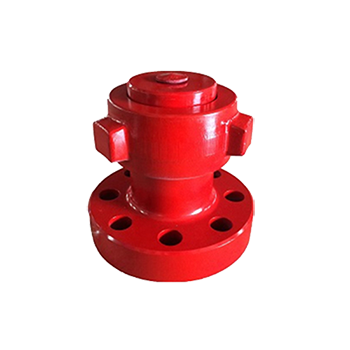

API 6A WELLHEAD CHRISTMAS TREE CAP

Product Name

Christmas Tree Cap

Working Pressure

2000 ~20000psi

Nominal Bore

2-1/16 ~ 7-1/16

Working Medium

oil、natural gas、mud and gas containing H2S、CO2

Working Temperature

-46°C~121°C(Class LU)

Material Class

AA、BB、CC、DD、EE、FF、HH

Specification level

PSL1-4

Specifications

Product Name Wellhead Christmas Tree Cap (Bottom Hole Test Adapter - BHTA)
Bore Size 2-1/16', 2-9/16', 3-1/16', 3-1/8', 4-1/16', 5-1/8', 7-1/16' and customization is available
Lifting Thread 2-3/8' EUE, 2-7/8' EUE, 3-1/2' EUE, 4-1/2' EUE etc
Connection API 6A Flange
Standard API Spec 6A, NACE MR0175, ISO 9001, ISO14001 et
Working Pressure 2000 PSI to 20000 PSI
Material Class AA, BB, CC DD, EE, FF
Performance Requirement PR1, PR2
Material AISI 4130 (Integral Forged), Stainless Steel
Temp Class K-U
Product Specification Level PSL1, PSL2, PSL3, PSL3G, PSL4
Paint Color At request

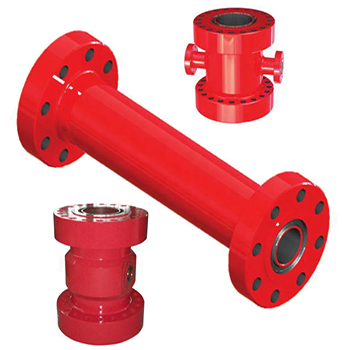

API Drilling Adapter Spool, Spacer Spool and Riser Flange

Product Name

Drilling Spool

Working Pressure

2000 ~15000psi

Nominal Bore

7 1/16--29 1/2 or As per customer requirement

Working Medium

oil、natural gas、mud and gas containing H2S、CO2

Working Temperature

-46°C~121°C(Class LU)

Material Class

AA、BB、CC、DD、EE、FF、HH

Specification level

PSL1-4

Oil Wellhead Christmas Tree Specifications

Product Name

Wellhead assembly Christmas tree X-mas tree

Working Pressure

2,000PSI -20,000PSI

Nominal Bore

2.1/16' to 5.1/8'

Working Medium

oil, natural gas, mud, gas with H2S, CO2

Working Temperature

-46° C - 121° C ( Class LU )

Material Class

AA、BB、CC、DD、EE、FF、HH

Specification level

PSL1-4

Performance level

PR1-2

Manufacture standard

API 6A

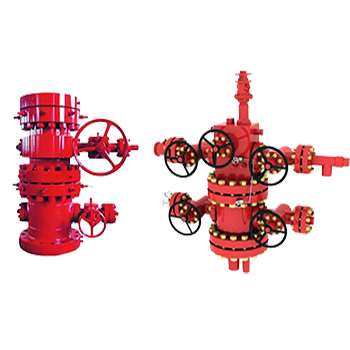

API 6A Wellhead Casing Head

Product Name

Casing Head /casing spool

Working Pressure

2,000PSI -20,000PSI

Nominal Bore

7' ~20'

Working Medium

oil, natural gas, mud, gas with H2S, CO2

Working Temperature

-46° C - 121° C ( Class LU )

Material Class

AA、BB、CC、DD、EE、FF、HH

Specification level

PSL1-4

Performance level

PR1-2

Manufacture standard

API 6A
