PRODUCTS

Well Cap

  • Material Class: AA、BB、CC、DD、EE、FF、HH
  • Working Pressure: 2000 ~15000psi
  • Nominal Bore: 71/16-291/2
  • Working Temperature: -46°C～121°C（Class LU）

Sucker Rod Stuffing Box

  • Casting steel Double packing cone packed stuffing box for API 11b polished rod
  • Material: AISI1045/4130 casting steel or ductile iron
  • Bottom Thread: 1.3/4”, 2”, 2.1/2”, 3”, 3.1/2”, 4”

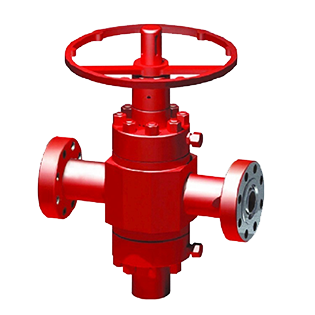

API Oilfield Valve

  • Type: Cameron FC Manual Gate Valves
  • Size: 5 1/8'
  • Class: 15000 psi
  • Certification: API 6A

OILFIELD PUMPING UNITS

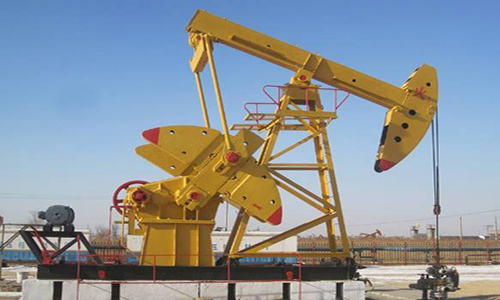

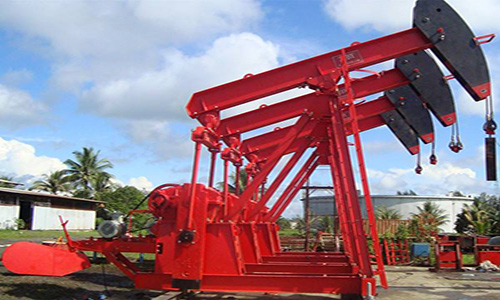

  • API 11E oil well sucker rod pumping

    API E series pumping unit is an export type pumping unit designed and manufactured in strict accordance with API Spec 11e specification for pumping units.

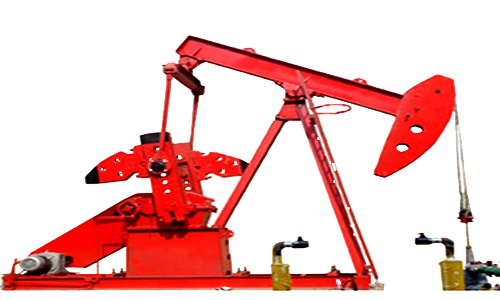

  • API Pumping Unit C Series

    API pumping unit C series API C series pumping unit is an export type pumping unit designed and manufactured in strict accordance with API Spec 11e specification for pumping units.

  • XBSY Pumping Unit For Oilfield Equipment

    XBSY Pumping Unit For Oilfield Equipment. Solid control unit API C series pumping unit is an export type pumping unit designed and manufactured in strict accordance with API Spec 11e specification for pumping units.

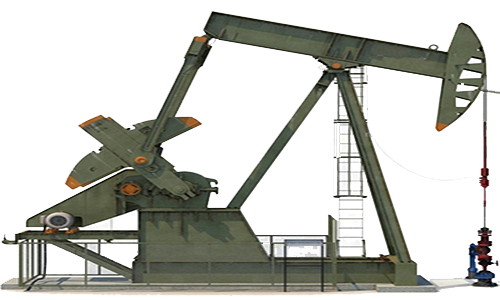

  • API Conventional Crank Balanced Beam –Pumping Unit

    API C series beam-pumping unit adopts crank balance. It is most common and most widely used ground power equipment in rod pumping work. Our product accords with API Spec 11E Specifications for Pumping Unit petroleum industry Standard GB/T29021-2012 and other related standards.

  • API Conventional Crank Balanced Beam –Pumping Unit

    API C series beam-pumping unit adopts crank balance. It is most common and most widely used ground power equipment in rod pumping work. Our product accords with API Spec 11E Specifications for Pumping Unit petroleum industry Standard GB/T29021-2012 and other related standards.

  • API Conventional Crank Balanced Beam –Pumping Unit

    API C series beam-pumping unit adopts crank balance. It is most common and most widely used ground power equipment in rod pumping work. Our product accords with API Spec 11E Specifications for Pumping Unit petroleum industry Standard GB/T29021-2012 and other related standards.

GET A QUOTE

OILWELL PUMPING UNITS

PDC BITS INSERT
PDC BITS INSERT
PDC BITS INSERT
PDC BITS INSERT
PDC BITS INSERT

Technical Performances

  1. Strength of critical parts is calculated with the finite element analysis, High reliability. simple operation, easy maintenance, long servicing life.
  2. Gear reducer is in-volute herring-bone gearing, working smoothly and reliably.
  3. Modular design, it has high degree of standardization, commonality, and serration with the spare parts.

API Size

Polished Rod

Capacity(lbs)

Stroke Lengths

(in.)

Torque Factor at 90°- Fourth Stroke Optional (in.)

Wire-line Size (in.)

Wire-line Center (in.)

C80D-119-64

11,900

64,51,38

37,29,21

0.866x208

10.24

C114D-143-64

14,300

64,54,44

37,30.5,24

1x240

10.24

C114D-173-64

17,300

64,44,54

37,30.5,24

1x240

10.24

C114D-143-74

14,300

74,62,51

42,35,28

1.1x295

10.24

C160D-200-74

20,000

74,64,54

42,36,30

1.1x295

10.24

C160D-173-74

17,300

74,64,54

42,36,30

1.1x295

10.24

C160D-173-86

17,300

86,74,62

49,41.5,34

1.1x295

10.24

C228D-246-86

24,600

86,74,61

49,41.5,34

1.1x295

10.24

C114D-119-100

11,900

100,86,73

57,48,40

1.1x295

10.24

C228D-213-100

21,300

100,86,73

57,48,40

1.1x295

10.24

C228D-213-120

21,300

120,103,86

69,59,48

1.1x295

10.24

C320D-213-120

21,300

120,102,85

68,57,47

1.1x360

10.24



Model

Rated polished rod load (lbs)

Stroke length (in)

Rated torque of reducer (in.lbs)

C-912D-470-240

47,000

240, 211, 181

912,000

C-912D-427-216

42,700

216, 185, 155

912,000

C-912D-427-192

42,700

192, 165, 138

912,000

C-912D-305-192

30,500

192, 165, 138

912,000

C-912D-365-168

36,500

168, 144, 121

912,000

C-912D-305-168

30,500

168, 144, 121

912,000

C-912D-427-144

42,700

144, 123, 102

912,000
