OCTG API SPEC 5CT J55 K55 L80 N80 C90 C95 T95 P110

API SPEC 5CT J55 K55 L80 N80 C90 C95 T95 P110 Thread: BTC STC LTC.

PRODUCTS

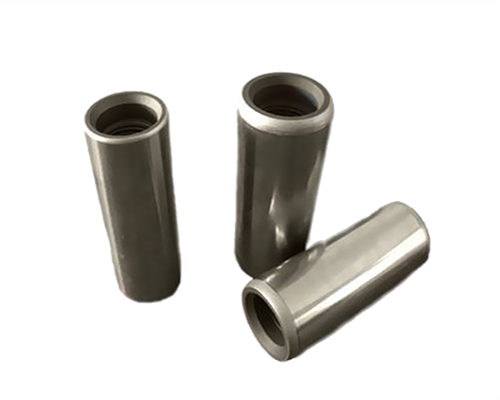

SUCKER ROD COUPLINGS


  • Material: D, HL
  • Size: 5/8 - 1 1/2
  • API: API 11B
  • Thread size: 5/8 - 1 1/8
  • Length: 10 ft - 35ft

OCTG API SPEC 5CT J55 K55 L80 N80 C90 C95 T95 P110


  • OCTG TUBING


    OCTG API 5CT Pipes – are used in oilfield industries. consisting of casing, tubing, drill pipe, conductor pipe, couplings, & pup joints. Most of them are Seamless Steel Pipes. Tubing, is used within the casing to convey the oil or gas to the ground surface, Tubing sizes from 1.050 to 4.5 inches O.D. inclusive, wall thickness from 3.18 mm to 10.54 mm.

  • OCTG CASING


    OCTG API 5CT Pipes – are used in oilfield industries. consisting of casing, tubing, drill pipe, conductor pipe, couplings, & pup joints. Most of them are Seamless Steel Pipes. Casing is the structural retainer for the walls of oil and gas wells, Casing size ranges from 4.5 to 20 inches O.D. inclusive, wall thickness from 5.21 mm to 15.88 mm.

  • TUBING & CASING COUPLING


    A range of fuel couplings includes: API dry disconnect couplings, API vapour recovery couplings and gravity drop couplings). They are common to the loading and unloading operations of fuel road tankers. ... API couplings are made of aluminium.

  • OCTG LINE PIPE


    OCTG Line Pipe is a high strength carbon steel pipe used for transporting crude oil, petroleum products, natural gas and water. It is a pipeline which carries only one type of fuel. These pipes are made as per metallurgical specifications developed by API (American Petroleum Institute). Line pipes are manufactured in a wide range of pipeline diameter size ranging from 2 inches to 48 inches.

  • OCTG DRILL PIPE


    API 5D OCTG Drill Pipe are seamless steel pipes used to drill oil well by transmitting power to a rotary drilling tool from the surface to below ground level, the drill pipes cover sizes form 2 3/8 to 6 5/8 inches O.D. inclusive, wall thickness from 6.88 mm to 12.7 mm.

  • OCTG PUP JOINT


    OCTG PUP JOINT: A pup joint is a pipe of non-standard length used to adjust the length of tubular strings to its exact requirement.

  • DRILL COLLAR


    OCTG Drill collars are extra-heavy integral tools used to concentrate weight onto the drill bit so as to produce sufficient force for the drill bit to break rock efficiently while drilling. They are made of AISI 4145H modified steel and are connected between drill pipes and drill bits.



OCTG Tubing

Standard API 5CT
Size  2 3/8”, 2 7/8”, 3 1/2”,  4 1/2”
Ends/Thread BTC, UN, EUE, EU
Length API 5CT Spec R1, R2, R3
Grade L80-1, N80-Q, 80SS
J55, K55, C90, C95, P110

OCTG Casing

Standard API 5CT
Size 4 1/2” - 20”
Ends Type Plain end, STC, LTC, BTC
Length R2 ,R3
Connection VAM TOP, VAM FJL; Tenaris
Grade J55, K55, N80, L80, C90, C95. P110

Tubing & Casing Couplings

Standard API 5CT/5B
Size 4 1/2” - 20”
Length
Thread LTC, STC, BTC
Grade J55, K55, L80, N80, P110


TUBING, CASING, LINE PIPE

  • API 5CT K55 CASING
  • API 5CT N80 CASING
  • API 5CT N80 CASING
  • API 5L 5L GR.B PSL 1, 2
  • API 5L LINE PIPE
  • API 5L PIPE
  • API 5L X 52 PSL 1, 2
  • API 5L X 52 LINE PIPE
  • API 5L X 52 PIPE
  • API 5CT L80 CASING
  • API 5CT C90 CASING
  • API 5CT C95 CASING
  • API 5L X 42 PSL 1,2
  • API 5L X 42 LINE PIPE
  • API 5L X 42 PIPE
  • API 5L X 56 PSL 1,2
  • API 5L X 56 LINE PIPE
  • API 5L X 56 PIPE
  • API 5CT T95 CASING
  • API 5CT P110 CASING
  • API 5CT Q125 CASING
  • API 5L X 46 PSL 1, 2
  • API 5L X 46 LINE PIPE
  • API 5L X 46 PIPE
  • API 5L X 60 PSL 1, 2
  • API 5L X 60 LINE PIPE
  • API 5L X 60 PIPE

Line Pipe API

Standard API 5L, A53-B,  A106-B/ASMEA, PSL1 PSL2
Steel Grade API 5L GR. B X42 x46 X52 X60 X65 X70 x80
WT SCH10 - SCH160, Light Wall - Extra Heavy
Ends Plain ends, Beveled ends
Length R1, R2, R3
OD 2 3/8''  -  24'' (ERW OD - OD is 4 1/2''  -  20'' Grade  A  B   X42 - X80)

Drill Pipe

Drill Collar

Pup joint
Standard
Length
Grade
Standard API SPEC 5D, 5CT, API SPEC
WT PSL1 PSL2 PSL3
Length R1 (18 - 22ft), R2 (27 - 31ft), R3 (38 - 45ft).
Diameter 2 3/8' - 6 5/8'
Thread End IU EU IEU
Connection API REG, FH, IF
Grade E, X, G, S, E-75 - S135
High strength grade: S-140, S-150, S-135, G-105, X-95,
Tool Joint NC26,  NC31, NC38, NC40, NC46,
NC50, NC56, 5H, 6 5/8 FH, HLDS26 - HLDS5 - HLDS 6 5/8

Pup Joint


Specifications



Steel Grade Size OD (mm) Nominal Weight (lb/ft) Wall thickness (in) Internal Diameter (in) End Type

API 5CT

J55 K55, L80, N80, P110

2 3/8 60.32 4.60 0.190 1.994 Plain End
2 7/8 73.02 6.40 0.217 2.441 NUE
3 1/2 88.90 9.20 0.254 2.992 EUE
4 1/2 114.30 12.60 0.271 3.958

Casing & Tubing Specifications

Grade

Type

Total elongation under load (%)

Yield strength (min)

Yield strength (max)

Tensile strength min Mpa

Hardness Max (HRC)

Hardness Max(HBW)

J55

-

0.5

379

552

517

-

-

K55

-

0.5

379

552

655

-

-

N80

1

0.5

552

758

689

-

-

N80

Q

0.5

552

758

689

-

-

L80

1

0.5

552

655

655

23

241

L80

9Cr

0.5

552

655

655

23

241

L80

13Cr

0.5

552

655

655

23

241

C90

-

0.5

621

724

689

25.4

255

C95

-

0.5

655

758

724

-

-

T95

-

0.5

655

758

724

25.4

255

P110

-

0.6

758

965

862

-

-

Q125

All

0.65

862

1034

931

-

-


Grade Size OD (mm) Nominal weight (lb/ft) Wall Thickness (in) End Type
J55, K55
N80, L80
P110
4 1/2 114.30

11.60

13.50

0.250

0.290

Long (short)

Round Thread

5 1/2 139.70

17.00

20.00

23.00

0.354

0.361, 0.415


Mechanical Properties

J55

-

0.5

379

552

517



K55

-

0.5

379

552

655



N80

1

0.5

552

758

689



N80

Q

0.5

552

758

689



L80

1

0.5

552

655

655

23

241

L80

9Cr

0.5

552

655

655

23

241

L80

13Cr

0.5

552

655

655

23

241

C90

-

0.5

621

724

689

25.4

255

C95

-

0.5

655

758

724



T95

-

0.5

655

758

724

25.4

255

P110

-

0.6

758

965

862



Q125

All

0.65

862

1034

931



Tubing & Casing Specification

Grade

Type

Total elongation under load (%)

Yield strength (min)

Yield strength (max)

Tensile strength min Mpa

Hardness Max (HRC)

Hardness Max(HBW)

J55

-

0.5

379

552

517

-

-

K55

-

0.5

379

552

655

-

-

N80

1

0.5

552

758

689

-

-

N80

Q

0.5

552

758

689

-

-

L80

1

0.5

552

655

655

23

241

L80

9Cr

0.5

552

655

655

23

241

L80

13Cr

0.5

552

655

655

23

241

C90

-

0.5

621

724

689

25.4

255

C95

-

0.5

655

758

724

-

-

T95

-

0.5

655

758

724

25.4

255

P110

-

0.6

758

965

862

-

-

Q125

All

0.65

862

1034

931

-

-

Tubing & Casing Couplings

Tubing Coupling Specifications OD mm   Min Length mm     Weight kg
NU EN NU EN NU EN
1.9 55.88 63.5 93.25 98.42 0.56 0.84
2 3/8 73.02 77.8 107.95 123.82 1.28 1.55
2 7/8 88.9 93.17 130.18 133.35 2.34 2.4
3 1/2 107.95 114.3 142.88 146.05 3.71 4.1
4 120.65 127 146.05 152.4 4.35 4.82
4 1/2 132.08 141.3 155.58 158.75 4.89 6.05
Casing Coupling Specifications OD mm Min Length mm Weight kg
  Short Thread Long Thread Short Thread Long Thread
4 1/2 127 158.75 177.8 3.62 4.15
5 141.3 165.1 196.85 4.66 5.75
5 1/2 153.67 171.45 203.2 5.23 6.42

Casing Couplings API 8 Round Thread Dimension and Masses

Label

Outside
Diameter
D (inches)

Outside
Diameter
W (inches)

Length
Inches

Mass
Lb/Ft

Quantity
Per Carton

Quantity
Per Carton

Short

Long

Short

Long

Short

Long

4-1/2

4.500

5.000

6-1/4

7

7.98

9.16

294

294

196

5

5.000

5.563

6-1/2

7-3/4

10.27

12.66

252

210

196

5-1/2

5.500

6.050

6-3/4

8

11.54

14.15

216

180

136

6-5/8

6.625

7.390

7-1/4

8-3/4

20.11

25.01

120

92

100

7

7.000

7.656

7-1/4

9

18.49

23.87

120

100

84

7-5/8

7.625

8.500

7-1/2

9-1/4

27.11

34.46

80

64

64

8-5/8

8.625

9.625

7-3/4

10

35.79

47.77

60

60

52

9-5/8

9.625

10.625

7-3/4

10-1/2

39.75

56.11

50

36

40

10-3/4

10.750

11.750

8

10-1/2

45.81

62.02

45

36

45

11-3/4

11.750

12.750

8

10-1/2

49.91

67.39

40

40

40

13-3/8

13.375

14.375

8

10-1/2

56.57

76.63

25

20

25

Casing Couplings API Buttress Threads Dimension and Masses

Label

Outside
Diameter
D (inches)

Outside
Diameter
W (inches)

Outside Diam.
Special
Clearance

Minimum
Length
Inches

Mass Lb/Ft

Quantity
Per Carton

Regular

Special
Clearance

4-1/2

4.500

5.000

4.875

8-7/8

10.120

7.680

196

5

5.000

5.563

5.375

9-1/8

13.000

8.820

196

5-1/2

5.500

6.050

5.875

9-1/4

14.150

9.850

136

6-5/8

6.625

7.390

7.000

9-5/8

24.490

12.460

100

7

7.000

7.656

7.375

10

23.240

13.840

84

7-5/8

7.625

8.500

8.125

10-3/8

34.880

20.470

64

8-5/8

8.625

9.625

9.125

10-5/8

45.990

23.800

52

9-5/8

9.625

10.625

10.125

10-5/8

51.050

26.490

40

10-3/4

10.750

11.750

11.250

10-5/8

56.740

29.520

45

11-3/4

11.750

12.750



10-5/8

61.800



40

13-3/8

13.375

14.375



10-5/8

70.030



25



Note: All Buttress couplings are 5 threads per inch with 4-1/2 thru 13-3/8 taper tapped-3/4' per foot on diameter.
Both LTC and STC couplings are 8 threads per inch and taper tapped-3/4' per foot on diameter

Coupling Grades & Color Identification

Grade

Type

Entery Coupling

Band(s)

H40



None

Same as for pipe

J55 Tubing



Bright Green

None

J55 Casing



Bright Green

One White

K55



Bright Green

None

M65



M65 pipe uses L80 Type 1 couplings

N80

1

Red

None

N80

Q

Red

Green

L80

1

Red

One Brown

L80

9 Cr

Red

Two Yellow

L80

13 Cr

Red

One yellow

C90

1

Purple

None

C90

2

Purple

One yellow

T95

1

Silver

None

T95

2

Silver

One yellow

C95



Brown

None

P110



White

None

Q125

1

Orange

None

API 5L X Grades

Grade

Chemical Composition

Yield Strength

Tensile Strength

Yield to Tensile

Elongation



C

Si

Mn

P

S

V

Nb

Ti

min. (KSI)

min. (KSI)

Ratio (max)

%

API 5L X52

0.16

0.45

1.65

0.020

0.010

0.07

0.05

0.04

52

66

0.93

21

API 5L X56

0.16

0.45

1.65

0.020

0.010

0.07

0.05

0.04

56

71

0.93

19

API 5L X60

0.16

0.45

1.65

0.020

0.010

0.08

0.05

0.04

60

75

0.93

19

API 5L X65

0.16

0.45

1.65

0.020

0.010

0.09

0.05

0.06

65

77

0.93

18

API 5L X70

0.17

0.45

1.75

0.020

0.010

0.10

0.05

0.06

70

82

0.93

17

Drill Pipe Technical specifications

Pipe

Tool Joint

Size OD,
in.

Nominal Weight,
lb/ft

Upset Type

Grade

Wall Thickness,
in.

ID,
in.

Connection Type

OD,
in.

ID,
in.

Pin Tong Space*,
in.

Box Tong Space*,
in.

2-3/8

6.65

EU

E-75

0.280

1.815

NC26

3-3/8

1-3/4

9

10

X-95

0.280

1.815

NC26

3-3/8

1-3/4

9

10

G-105

0.280

1.815

NC26

3-3/8

1-3/4

9

10

S-135

0.280

1.815

NC26

3-5/8

1-3/4

9

10

2-7/8

10.40

EU

E-75

0.362

2.151

NC31

4-1/8

2-1/8

9

11

X-95

0.362

2.151

NC31

4-1/8

2

9

11

G-105

0.362

2.151

NC31

4-1/8

2

9

11

S-135

0.362

2.151

NC31

4-3/8

1-5/8

9

11

3-1/2

13.30

EU

E-75

0.368

2.764

NC38

4-3/4

2-11/16

10

12-1/2

X-95

0.368

2.764

NC38

5

2-9/16

10

12-1/2

G-105

0.368

2.764

NC38

5

2-7/16

10

12-1/2

S-135

0.368

2.764

NC38

5

2-1/8

10

12-1/2

15.50

EU

E-75

0.449

2.602

NC38

5

2-9/16

10

12-1/2

X-95

0.449

2.602

NC38

5

2-7/16

10

12-1/2

G-105

0.449

2.602

NC38

5

2-1/8

10

12-1/2

S-135

0.449

2.602

NC40

5-1/2

2-1/4

9

12

4

14.00

IU

E-75

0.330

3.340

NC40

5-1/4

2-13/16

9

12

X-95

0.330

3.340

NC40

5-1/4

2-11/16

9

12

G-105

0.330

3.340

NC40

5-1/2

2-7/16

9

12

S-135

0.330

3.340

NC40

5-1/2

2-7/16

9

12

EU

E-75

0.330

3.340

NC46

6

3-1/4

9

12

X-95

0.330

3.340

NC46

6

3-1/4

9

12

G-105

0.330

3.340

NC46

6

3-1/4

9

12

S-135

0.330

3.340

NC46

6

3

9

12

15.70

IU

E-75

0.380

3.240

NC40

5-1/4

2-11/16

9

12

X-95

0.380

3.240

NC40

5-1/4

2-7/16

9

12

G-105

0.380

3.240

NC40

5-1/2

2-7/16

9

12

S-135

0.380

3.240

NC40

5-1/2

2

9

12

EU

E-75

0.380

3.240

NC46

6

3-1/4

9

12

X-95

0.380

3.240

NC46

6

3-1/4

9

12

G-105

0.380

3.240

NC46

6

3-1/4

9

12

S-135

0.380

3.240

NC46

6

3

9

12

4-1/2

16.60

IEU

E-75

0.337

3.826

NC46

6-1/4

3

9

12

X-95

0.337

3.826

NC46

6-1/4

3-1/4

9

12

G-105

0.337

3.826

NC46

6-1/4

3

9

12

S-135

0.337

3.826

NC46

6-1/4

2-3/4

9

12

EU

E-75

0.337

3.826

NC50

6-5/8

3-3/4

9

12

X-95

0.337

3.826

NC50

6-5/8

3-3/4

9

12

G-105

0.337

3.826

NC50

6-5/8

3-3/4

9

12

S-135

0.337

3.826

NC50

6-5/8

3-1/2

9

12

20.00

IEU

E-75

0.430

3.640

NC46

6-1/4

3

9

12

X-95

0.430

3.640

NC46

6-1/4

2-3/4

9

12

G-105

0.430

3.640

NC46

6-1/4

2-1/2

9

12

S-135

0.430

3.640

NC46

6-1/4

2-1/4

9

12

EU

E-75

0.430

3.640

NC50

6-5/8

3-5/8

9

12

X-95

0.430

3.640

NC50

6-5/8

3-1/2

9

12

G-105

0.430

3.640

NC50

6-5/8

3-1/2

9

12

S-135

0.430

3.640

NC50

6-5/8

3

9

12

5

19.50

IEU

E-75

0.362

4.276

NC50

6-5/8

3-3/4

9

12

X-95

0.362

4.276

NC50

6-5/8

3-1/2

9

12

G-105

0.362

4.276

NC50

6-5/8

3-1/4

9

12

S-135

0.362

4.276

NC50

6-5/8

2-3/4

9

12

E-75

0.362

4.276

5-1/2 FH

7

3-3/4

10

12

X-95

0.362

4.276

5-1/2 FH

7

3-3/4

10

12

G-105

0.362

4.276

5-1/2 FH

7

3-3/4

10

12

S-135

0.362

4.276

5-1/2 FH

7-1/4

3-1/2

10

12

25.60

IEU

E-75

0.500

4.000

NC50

6-5/8

3-1/2

9

12

X-95

0.500

4.000

NC50

6-5/8

3

9

12

G-105

0.500

4.000

NC50

6-5/8

2-3/4

9

12

S-135

0.500

4.000

NC50

6-5/8

2-3/4

9

12

E-75

0.500

4.000

5-1/2 FH

7

3-1/2

10

12

X-95

0.500

4.000

5-1/2 FH

7

3-1/2

10

12

G-105

0.500

4.000

5-1/2 FH

7-1/4

3-1/2

10

12

S-135

0.500

4.000

5-1/2 FH

7-1/4

3-1/4

10

12

5-1/2

21.90

IEU

E-75

0.361

4.778

5-1/2 FH

7

4

10

12

X-95

0.361

4.778

5-1/2 FH

7

3-3/4

10

12

G-105

0.361

4.778

5-1/2 FH

7-1/4

3-1/2

10

12

S-135

0.361

4.778

5-1/2 FH

7-1/2

3

10

12

24.70

IEU

E-75

0.415

4.670

5-1/2 FH

7

4

10

12

X-95

0.415

4.670

5-1/2 FH

7-1/4

3-1/2

10

12

G-105

0.415

4.670

5-1/2 FH

7-1/4

3-1/2

10

12

S-135

0.415

4.670

5-1/2 FH

7-1/2

3

10

12

6-5/8

25.20

IEU

E-75

0.330

5.965

6-5/8 FH

8

5

10

13

X-95

0.330

5.965

6-5/8 FH

8

5

10

13

G-105

0.330

5.965

6-5/8 FH

8-1/4

4-3/4

10

13

S-135

0.330

5.965

6-5/8 FH

8-1/2

4-1/4

10

13

27.70

IEU

E-75

0.362

5.901

6-5/8 FH

8

5

10

13

X-95

0.362

5.901

6-5/8 FH

8-1/4

4-3/4

10

13

G-105

0.362

5.901

6-5/8 FH

8-1/4

4-3/4

10

13

S-135

0.362

5.901

6-5/8 FH

8-1/2

4-1/4

10

13



Casing Pup joint Specification
OD4.25' - 20' nomial size OD
WeightStandard weight or Heavy
Lenght2 - 20 ft and custom sizes vaialable
ConnectionsLC STC BC and leading brand Premium connections available
Tubing Pup Joint Specification
OD0.75' - 4.5' nominal size OD
WeightStandard or Heavy
Lenghts2 3 4 6 8 10 12ft (custom lenghts available).
GradesJ-5,5 N-80, N80Q & T, L-10, P-110.
ConnectionsEUE NUE Butress and Premium available in leading brands.

Drill Collars Specifications

Drill Collor Number*

Outside Diameter,
in.

Inside Diameter,
in.

Length,
ft

Approximate Weight,
lb/ft

Typical Bending
Strength Ratio

NC 23-31

3-1/8

1-1/4

30

22

2.57:1

NC 26-35 (2-3/8 IF)

3-1/2

1-1/2

30

27

2.42:1

NC 31-41 (2-7/8 IF)

4-1/8

2

30 or 31

34

2.43:1

NC 35-47

4-3 /4

2

30 or 31

47

2.58:1

NC 38-50 (3-1/2 IF)

5

2-1/4

30 or 31

54

2.38:1

NC 44-60

6

2-1/4

30 or 31

83

2.49:1

NC 44-60

6

2-13 /16

30 or 31

76

2.84:1

NC 44-62

6-1/4

2-1/4

30 or 31

91

2.91:1

NC 46-62 (4 IF)

6-1/4

2-13 /16

30 or 31

84

2.63:1

NC 46-65 (4 IF)

6-1/2

2-1/4

30 or 31

100

2.76:1

NC 46-65 (4 IF)

6-1/2

2-13 /16

30 or 31

93

3.05:1

NC 46-67 (4 IF)

6-3 /4

2-1/4

30 or 31

109

3.18:1

NC 50-70 (4-1/2 IF)

7

2-1/4

30 or 31

118

2.54:1

NC 50-70 (4-1/2 IF)

7

2-13 /16

30 or 31

111

2.73:1

NC 50-72 (4-1/2 IF)

7-1/4

2-13 /16

30 or 31

120

3.12:1

NC 56-77

7-3 /4

2-13 /16

30 or 31

140

2.70:1

NC 56-80

8

2-13 /16

30 or 31

151

3.02:1

6-5/8 API Reg

8-1/4

2-13 /16

30 or 31

162

2.93:1

NC 61-90

9

2-13 /16

30 or 31

196

3.17:1

7-5/8 API Reg

9-1/2

3

30 or 31

217

2.81:1

NC 70-97

9-3 /4

3

30 or 31

230

2.57:1

NC 70-100

10

3

30 or 31

243

2.81:1

8-5/8 API Reg

11

3

30 or 31

300

2.84:1

*The number connection (NC ) is an API connection with the V- .065 thread form with a V- .038R thread root radius. The first two digits are the pitch diameter of the thread and the last two digits are the outside diameter of the drill collar.

error: Content is protected !!
